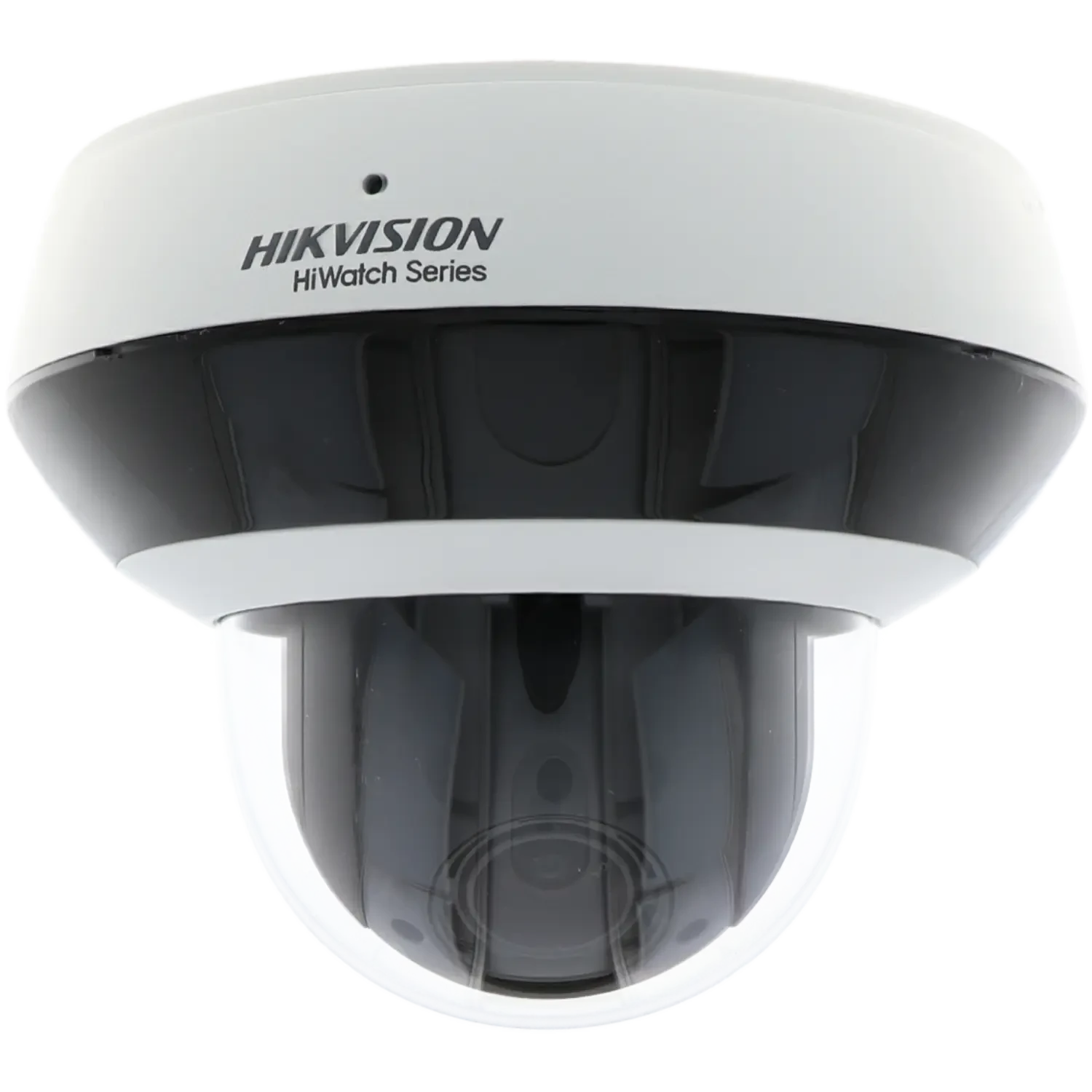

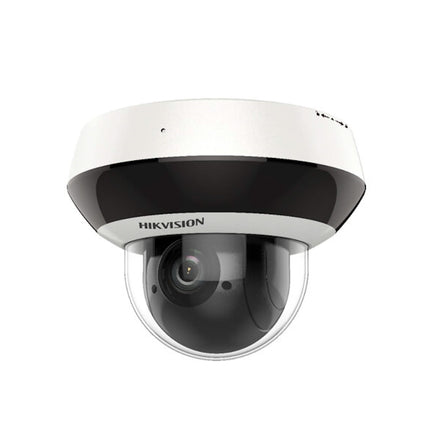

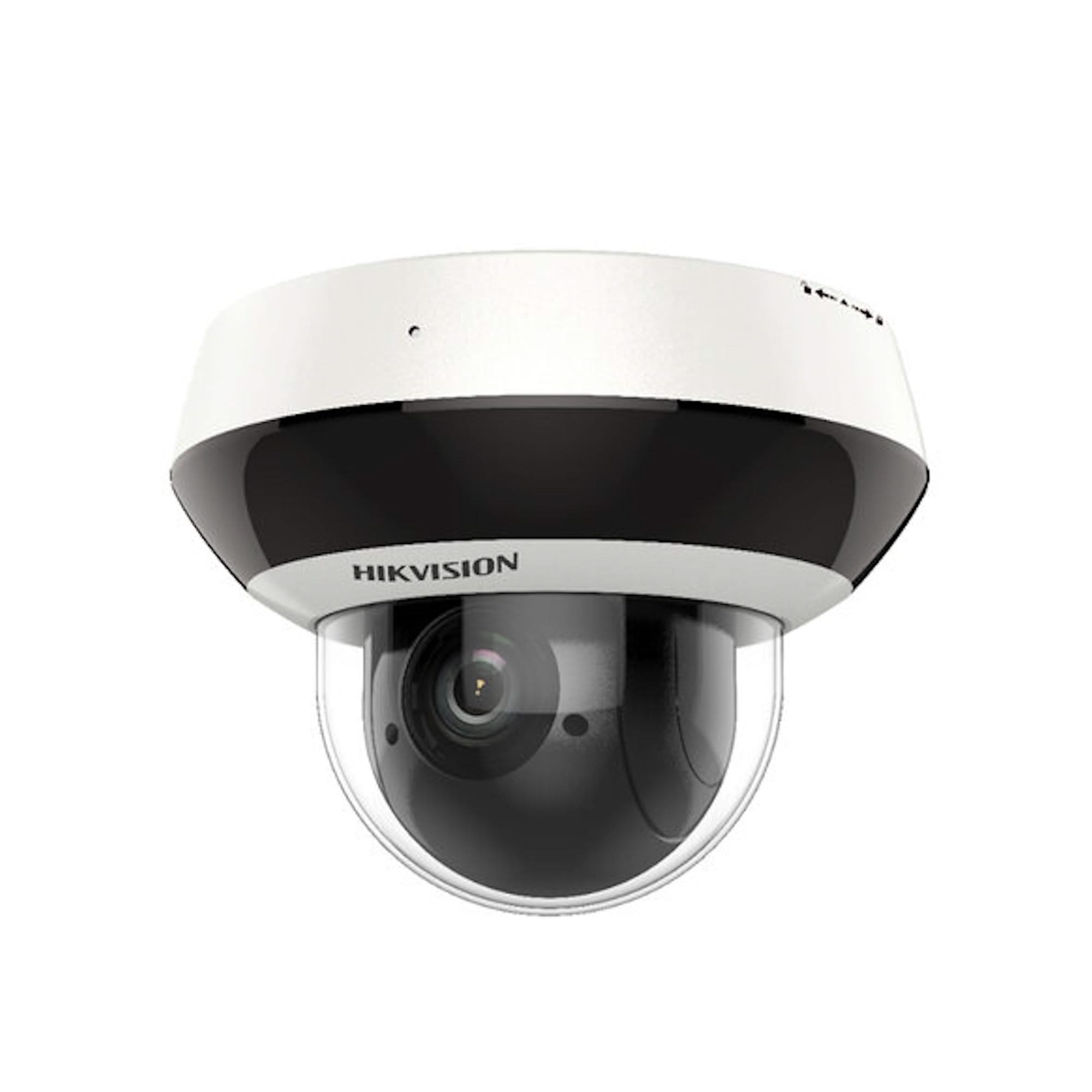

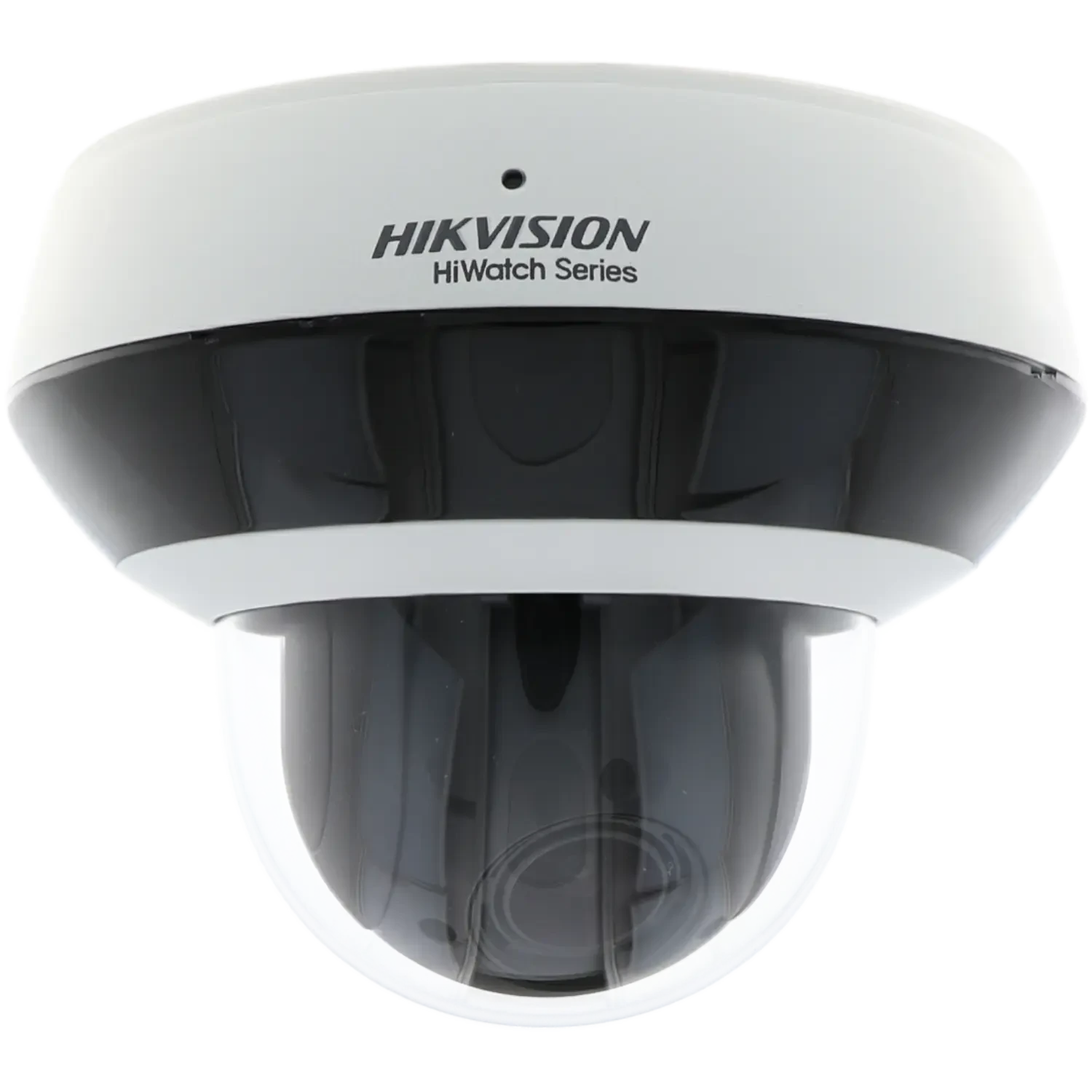

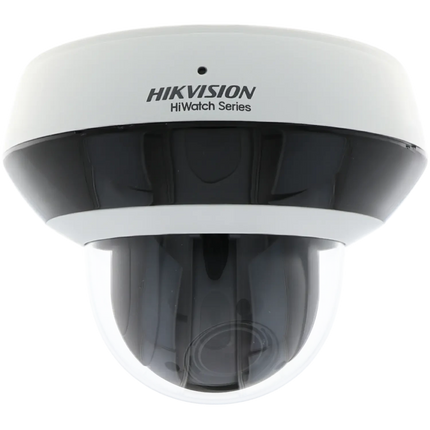

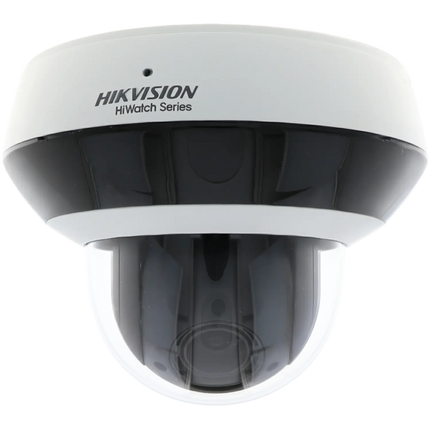

The 4MP Hikvision HWP-N2404IH-DE3 is a professional motorized PTZ outdoor ip camera of 4 megapixels with 2560 × 1440P resolution and 4x optical zoom. The camera can rotate, tilt, zoom (PTZ) and features a microSD slot for image recording. Also, this PTZ camera has IR illumination so it can see very well in the dark up to 20 meters. The camera equipped with a 1 / 2.8" CMOS sensor progressive scan, varifocal lens of 2.8 - 12 mm, 120 dB WDR and supports H.265+ video compression. Thanks to its IP66 certification, the camera is suitable for outdoor use and is vandal-resistant (IK10 rating). With the Hik-Connect app, you can see what's happening at home 24/7 from any location via your smartphone.
- Two-inch 4 MP camera with pan, tilt and zoom function (4x)
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong backlight thanks to 120 dB true WDR technology
- Excellent nighttime performance with enhanced IR up to 20 m
- Water and dust resistant (IP66) and vandal resistant (IK10)
Specifications:
-
Lens
-
FOV
- Horizontal field of view: 100° to 33° (Wide-Telescope)
- Vertical field of view: 53° to 18° (Wide-Telescope)
- Diagonal field of view: 119° to 37.5° (Wide-Telescope)
-
Focal Length
2.8 mm to 12 mm, 4× optical zoom
-
Zoom speed
Approximately 2 s (optical lens, wide-telescope)
-
Working distance
10 mm to 1500 mm (wide-telescope)
-
Aperture range
F1.6 to F2.7
-
Smart features
- Basic event detection
Motion detection, video processing detection, exception
- Smart detection
Face detection, intrusion detection, line crossing detection, region access detection, region exit detection, object removal detection, abandoned luggage detection, audio exception detection
- Smart recording
ANR (Automatic Network Replenishment), Dual-VCA
-
ROI
Main stream, sub-stream and third stream support two fixed areas, respectively.
-
Network
-
Security measures
User authentication (ID and password), host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access; IP address filtering
-
Network storage
Integrated memory card slot, supports Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/CIPS), ANR
-
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
-
API
Open, supports ONVIF, ISAPI and CGI, supports HIKVISION SDK and Third-Party Management Platform, supports Hik-Connect
-
Simultaneous live view
Up to 20 channels
-
User/Host
Up to 32 users, 3 levels: Administrator, Operator and User
-
Client
iVMS-4200, HikCentral Pro, Hik-Connect
-
Web Browser
IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
-
Video
-
Max. Resolution
2560 × 1440
-
-
Image Enhancement
3D DNR, BLC, HLC, EIS, Regional Exposure, Regional Focus
-
Sub-stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
-
Main stream
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 24fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
-
Third stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
-
Interface
-
Audio input
1-channel audio input
-
Audio output
1-channel audio output
-
Network connection
1 RJ45 10 M/100 M Ethernet, PoE
-
Built-in microphone
1 built-in microphone, captures sounds in a radius of up to 5 meters
-
Camera Module
-
Image sensor
1/3" progressive scan CMOS
-
Minimum exposure
Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
-
White balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Needle Lamp
-
Gain
Auto/Manual
-
Shutter speed
50Hz: 1/1 s to 1/30,000 s, 60Hz: 1/1 s to 1/30,000 s
-
Day & Night
IR Cut Filter
-
Digital zoom
16×
-
Privacy Mask
24 programmable privacy masks
-
Focus mode
Auto/Semi-Auto/Manual
-
WDR
120 dB WDR
-
General
-
Material
Aluminum alloy, PC, PC+ABS
-
Dimensions
Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
-
Weight
Approximately 0.53 kg (1.17 lb)
-
Protection level
IP66 Standard, IK10, TVS 4000V Lightning protection, Voltage surge protection and Voltage fluctuation protection
-
Power supply
12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR)
PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)
-
Operating temperature
-20°C to 60°C (-4°F to 140°F)
-
Working humidity
≤ 90%
-
Supplemental light
IR distance: 20 m
Smart IR: Support
-
PTZ
-
Motion Range (Pan)
0° to 330°
-
Pan speed
Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
-
Movement range (Tilt)
From 0° to 90°
-
Tilt speed
Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
-
Proportional zoom
Support
-
Presets
300
-
Power-off memory
Support
-
Compression standard
-
H.264+
Support
-
H.265+
Support
-
H.264 Type
Baseline Profile/Main Profile/High Profile
-
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG
-
H.265 Type
Main Profile
-
Video Bitrate
32 Kbps to 16384 Kbps
-
Audio Compression
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
-
Audio Bitrate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
-
SVC
Support
