Product form

DS-3E1505P-EI, 4x PoE Gigabit Switch, 300m PoE range

The Hikvision DS-3E1505P-EI is an unmanaged switch with 4 Gigabit Ethernet ports with PoE+ (802.3at) and 1 Gigabit RJ45 uplink... Read more

Delivery time 1-2 working days

926 kr765 kr Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    B2B Installateurs bestellen met korting

    Aanmelden B2B bedrijf

    Ben jij een professionele installateur die op zoek is naar nieuwe kansen en langdurige samenwerkingen? Sluit je dan aan bij ons groeiende netwerk van betrouwbare B2B-installateurs!

    Wat bieden wij jou?
    - Toegang tot hoogwaardige producten en projecten
    - Interessante marges en inkoopvoorwaarden
    - Technische ondersteuning en training
    - Een betrouwbaar partnerschap

    Aanmelden is eenvoudig:
    Vul het online formulier in en we nemen snel contact met je op voor een eerste kennismaking.

    Samen maken we elk project een succes.
    Meld je vandaag nog aan en groei met ons mee!

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days

    check Associated products for DS-3E1505P-EI, 4x PoE Gigabit Switch, 300m PoE range

    Size chart

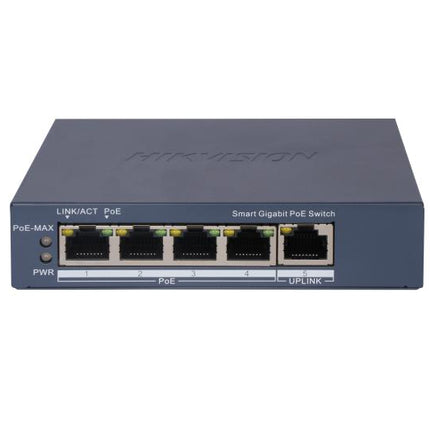

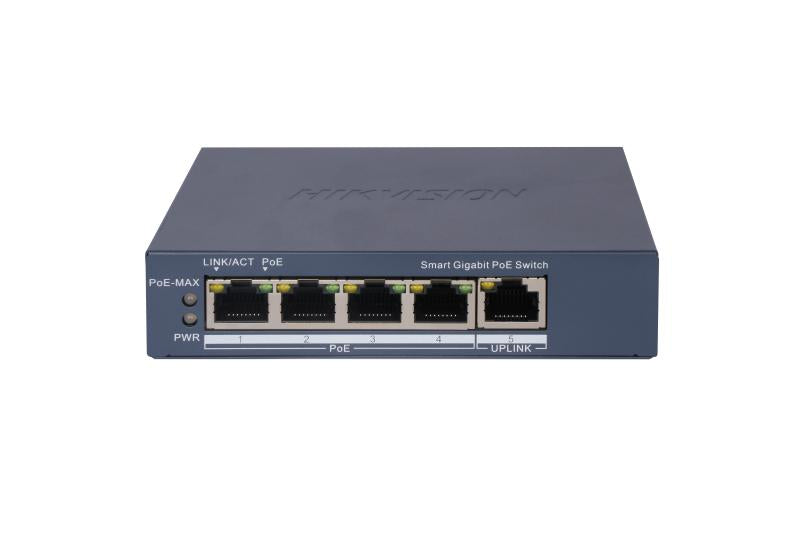

    The Hikvision DS-3E1505P-EI is an unmanaged switch with 4 Gigabit Ethernet ports with PoE+ (802.3at) and 1 Gigabit RJ45 uplink port. You can easily connect your cameras and other network devices to this for a stable network connection and power.

    • 4 × Gigabit PoE ports, 1 × Gigabit RJ45 port
    • Total PoE power budget: 60W
    • Supports 802.1Q VLAN
    • Supports PoE watchdog to detect and restart unresponsive cameras
    • Supports STP/RSTP loop prevention
    • Supports cable detection to locate faults
    • Up to 300 m long PoE transmission distance
    • 6KV surge protection

    Specificaties:

    Algemeen

    • Casing:Metal material
    • Net weight: 0.26 kg (0.573 lb)
    • Gross Weight: 0.75 kg (1.65 lb)
    • Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77" × 1.09" × 3.27")
    • Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
    • Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F)
      • .
    • Working humidity: 5% to 95% (without condensation)
    • Relative Humidity: 5% to 95% (without condensation)
    • Power supply: 54VDC, 1.2A
    • Installation mode: Desk-mounted, Wall-mounted
    • Max. Power consumption: 65 W
    • Power consumption at idle: 0.9 W
    • Voltage protection: 6 KV

    Netwerkparameters

    • Ports: 4 × Gigabit PoE ports, 1 × Gigabit RJ45 port
    • MAC address Table: 2 K
    • Switching Capacity: 10 Gbps
    • Package Forwarding Speed: 7.44 Mpps
    • Internal Cache: 1 Mbits

    PoE Stroomvoorziening

    • PoE Standard: IEEE 802.3af, IEEE 802.3at
    • PoE Current Pin: End-span: 1/2(-), 3/6(+)
    • PoE Ports: PoE: Ports 1 to 4
    • Max. Port Power: 30 W
    • PoE Power Budget: 60 W
