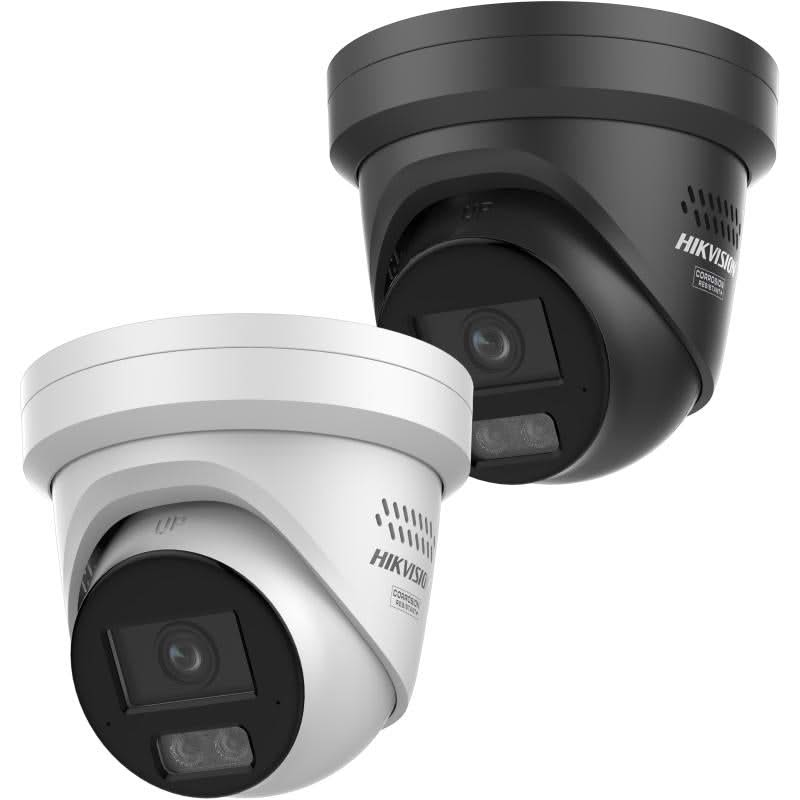

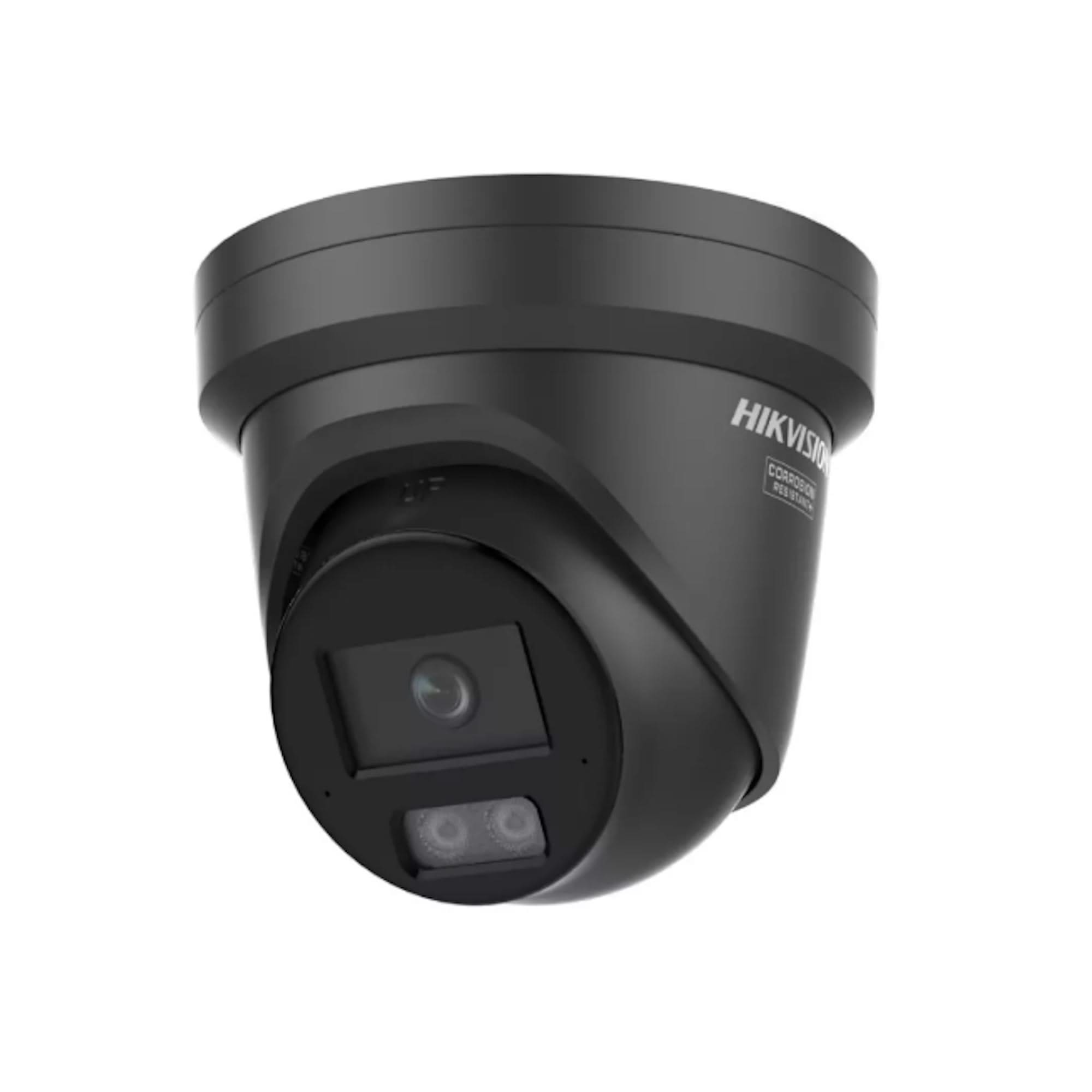

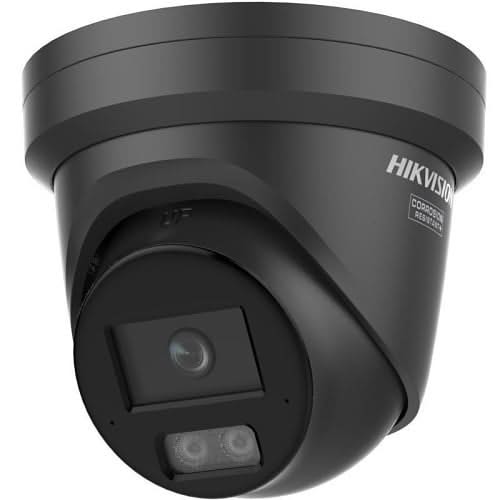

Hikvision ColorVu 3.0 Hybrid offers the freedom to choose or combine: 3 functions in 1 camera. This camera series is suitable both as a day/night camera and for 24/7 color imaging. The combination of ColorVu technology with IR functionality makes the camera versatile. Thanks to its super aperture and highly light-sensitive sensor, this camera delivers unmatched image quality, even in low light. Advanced noise reduction and an innovative light compensation function (Auto WDR) ensure a clear and balanced image under all conditions.
With Smart Hybrid Light, the camera automatically switches between lighting modes. In low-light situations, night mode with IR illumination is activated. Upon detection of a person or vehicle, the camera immediately switches to color mode with white LED backlighting. This optimally highlights the scene, displays objects in color and creates a deterrent effect for unwanted visitors!
- High resolution 4MP camera with 25fps
- 24/7 colorful images with enhanced ColorVu3.0 technology
- HikAI-ISP for superior noise reduction and sharper details
- Automatic WDR to prevent overexposure and loss of detail
- Smart hybrid lighting smartly switches between night image with IR and color image
- People and vehicle detection Acusense 2.0 technology for targeted security
- Arrayed Dual-Mic for enhanced sound recording and speech clarity
- Anti-corrosion design (NEMA4X) for robust performance in various conditions
- IP67 rating for water and dust resistance
Specifications:
- Camera
-
Image Sensor1/1.8" Progressive Scan CMOS
-
Max. Resolution: 2688 × 1520
-
Min. Illumination:
- Color: 0.0001 Lux @ (F1.0, AGC ON)
- 0 Lux with light
-
Shutter speed: 1 s to 1/100,000 s
-
Day & Night: IR cut filter
-
Angle adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 75°
- Rotation: 0° to 360°
-
Lens
-
Lens Designation: Fixed focal length lens, 2.8 and 4 mm optional
-
Focal length & FOV:
- 2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°
- 4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
-
Lens mount: M16
-
Aperture Type: Fixed
-
Aperture: F1.0
-
Depth of field:
- 2.8 mm: 2.5 m to ∞
- 4 mm: 3.1 m to ∞
-
DORI:
- 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
- 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
-
Illuminator
-
Type Supplementary Light: White Light, IR
-
Range Supplementary Light: Up to 30 m
-
Smart Supplementary Light: Yes
-
IR Wavelength: 850 nm
-
Video
-
Main stream:
- 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Substream:
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
The third stream is supported under certain settings.
-
Video Compression:
- Hoofdstream: H.265/H.264/H.264+/H.265+
- Substream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
Third stream is supported under certain settings.
-
Video bitrate: 32 Kbps to 8 Mbps
-
H.264 Type: Baseline Profile, Main Profile, High Profile
-
H.265 Type: Main Profile
-
Bitrate control: CBR, VBR
-
Scalable Video Codec (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main stream
-
Audio
-
Audio Type: -2U: Mono sound
-
Audio bitrate:
- -2U: 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 16 Kbps to 64 Kbps (AAC-LC) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3)
-
Audio Compression: -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Audio sampling frequency: -2U: 8 kHz/16 kHz/32 kHz/48 kHz
-
Ambient noise filtering: -2U: Yes
-
Network
-
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
-
Simultaneous Live View: Up to 6 channels
-
API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
-
User/HostUp to 32 users
- 3 user levels : administrator, operator, and user
-
Security:
- Password protection, complex password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, timeout settings control, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
-
Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
-
Client: iVMS-4200, Hik-Connect, Hik-Central
-
Web browser:
- Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
- Local service: Chrome 80+, Firefox 80+, Edge 89+
-
-
Image parameters Switch: Yes
-
Image settings: Rotation mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser
-
Day/Night SwitchDay, Night, Auto, Schedule
-
Image Enhancement: BLC, HLC, 3D DNR, Distortion correction, Defog
-
SNR: ≥ 52 dB
-
Wide Dynamic Range (WDR): 130 dB
-
Image stabilization: EIS
-
Privacy Mask: 4 programmable polygon privacy masks
-
Interface
-
Ethernet interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
-
Onboard Storage: Built-in memory card slot, supports microSD/microSDHC/microSDXC card, up to 512 GB
-
Audio: Built-in Microphone:
- -2U: eroded dual microphone
-
Reset button: Yes
-
Events
-
Basic Event: Motion detection (supports alarm triggers by specified target types (human and vehicle)), video decay alarm, exception
-
Smart Event: Scene change detection
-
Link: Upload to FTP/NAS/memory card, notifications to monitoring center, activate recording, capture recording, send e-mail
-
Deep Learning Function: Face Recognition
-
Perimeter security: Line crossing, intrusion, region entry, region exit
- Supports alarm triggers by specified target types (human and vehicle)
-
General
-
Current: 12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power connector, reverse polarity protection,
- PoE: IEEE 802.3af, Class 3, max. 11 W
-
Material: Cover: Metal, main body: Metal
-
Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
-
Packaging Dimensions: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
-
Weight: Approximately 750 g (1.7 lb.)
-
Weight with packaging: Approximately 1140 g (2.5 lb.)
-
Storage conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing).
-
Start-up and operating conditions.: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing).
-
General Function: Heart rate, mirror, flash log, password reset via e-mail, pixel counter, anti-banding
-
Language: 33 languages
