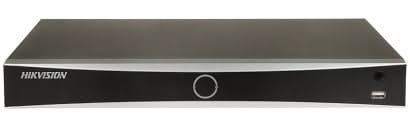

DS-7608NXI-K1/8P 8-channel 4K NVR HDMI and PoE

DS-7608NXI-K1/8P 8 channels 4K NVR HDMI and PoE

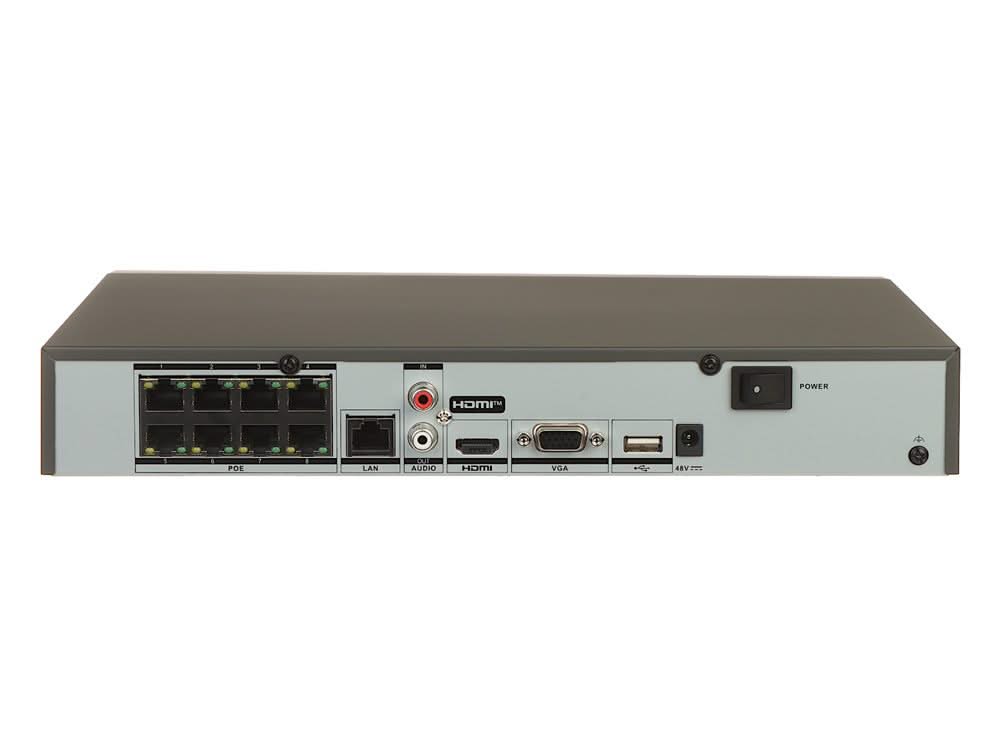

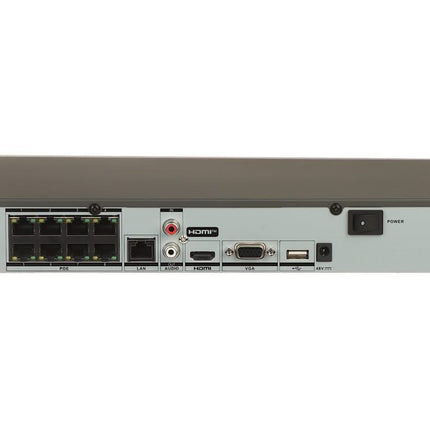

The Hikvision DS-7608NXI-K1/8P Network Video Recorder is an 8 channel Acusense recorder with 8x PoE inputs. Acusense is a technology that allows the recorder to recognize and record people and/or vehicles on all connected cameras. This reduces useless recordings such as recordings of leaves blowing around. The recorder is equipped with 8x PoE for plug and play connecting IP Cameras, a Hdmi output for connection of a TV or Monitor, a network output for connection to the network/APP, 1x SATA connection for a Hard Drive (not included as standard, select below)

Hikvision AcuSense NVR 8-channel IP camera up to 12MP 4K with 8 x PoE, classification of people and vehicles for motion detection ( MD2.0) on 8 channels, fast target search and 1-channel face recognition. (video stream) or 4-channel on face recognition with photos.

Specifications:

• Intelligent analytics
• AI by device - Face recognition, perimeter security, motion detection 2.0
• AI by camera - Face recognition, perimeter security, motion detection2.0, ANPR, VCA

  Motion detection 2.0
• Per device - All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for recognition of people and vehicles
• Per camera - All channels

  Perimeter protection
• Per device 2-channel, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
• Per camera - All channels

  Video and audio
• IP video input - 8 channels
• Incoming bandwidth - 80 Mbps
• Outgoing bandwidth - 160 Mbps
• HDMI output - 1-channel, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA output - 1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video output mode - HDMI/VGA independent output
• CVBS output N/A
• Audio output - 1-channel, RCA (2.0 Vp-p, 1 KΩ, using audio input)
• Two-way audio - 1-channel, RCA (linear, 1 KΩ)

  Decoding
• Decoderingsformaat H.265/H.265+/H.264+/H.264
• Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Playback - 8 Channels
  Decoding capabilities -
  AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30fps)
  AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30fps)
• Stream type - video, video and audio
• Audio Compression - G.711ulaw/G.711alaw/G.722/G.726/AAC

  Network
• Remote connection - 128
• API - ONVIF (profile S/G); SDK; ISAPI
• Compatible browser- IE11, Chrome V57, Firefox V52, Safari V12, Edge V89 or higher
• Network protocol - TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network interface - 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

  PoE
• Interface - 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power - ≤ 80 W
• Standard - IEEE 802.3af/at

  Interface
• SATA - 1 SATA interface
• Capacity - Up to 10 TB
• USB interface -
  Front panel: 1 × USB 2.0;
  Back panel: 1 × USB 2.0
