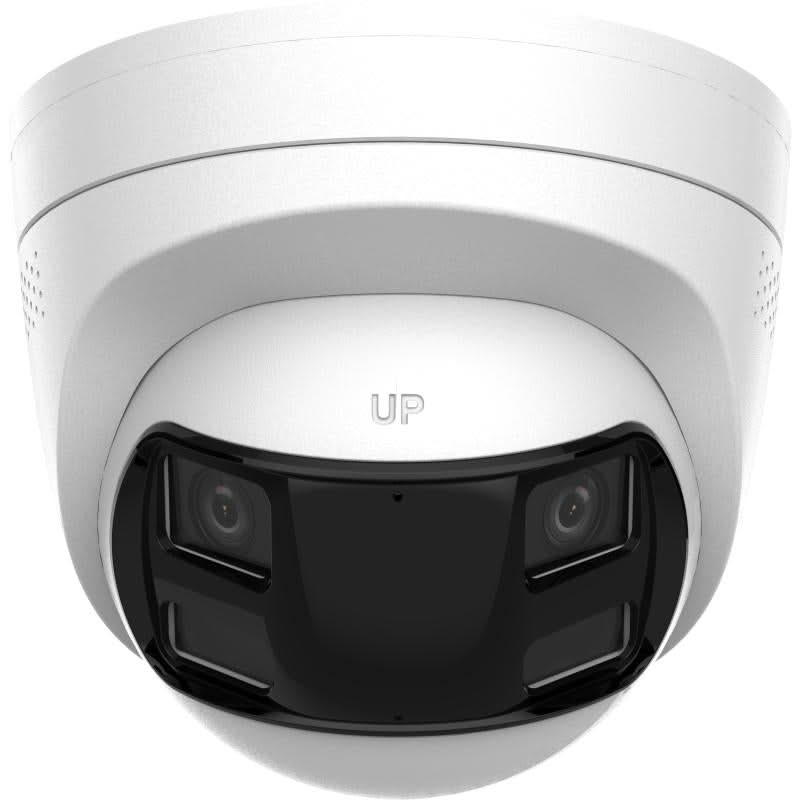

The Hikvision DS-2CD1383G2P-LIUF/S(L) is an advanced Value Series network camera designed for both indoor and outdoor applications. With an 8 MP resolution and 180° field of view, this camera delivers sharp images over a wide area.

Key features:

• Image quality: 8 MP resolution (4256 × 1888) with 180° horizontal field of view and 77° vertical field of view.

• Smart illumination: Equipped with Smart Hybrid Light technology, including white light up to 30 meters for clear night vision images.

• Smart detection: Supports person and vehicle detection to reduce false alarms.

• Audio: Built-in microphone and speaker for two-way audio and audio alerts.

• Storage: Supports microSD cards up to 512 GB for local storage.

• Weather resistance: IP67 rating for protection against dust and water.

• Security: Multiple security protocols, including password protection and MAC address authentication.

• Strobe and alarm: Depending on the model (RB or SL), the camera features a red-blue flashing light or white light for deterring intruders.

This camera is ideal for applications such as parking lots, shopping malls and other public areas where both wide coverage and detailed recognition are required.

Specifications:

Camera

• Image sensor: 1/2.4" Progressive Scan CMOS

• Maximum resolution: 4256 × 1888

• Minimum illumination:

  • Color: 0.005 Lux @ (F1.6, AGC ON)

  • 0 Lux with light

• Shutter speed: 1 s to 1/100,000 s

• Day & Night: IR-cut filter

• Angle adjustment:

  • Pan: 0° to 360°

  • Tilt: 0° to 75°

  • Rotation: 0° to 360°

Lens

• Type: Fixed focus lens, 2 mm

• Focal Length & Field of View:

  • 2 mm

  • Horizontal FOV: 180°

  • Vertical FOV: 77°

• Lens mount: M12

• Iris: Fixed

• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• Detection: 50 m

• Observation: 20 m

• Recognition: 10 m

• Identification: 5 m

Illumination

• Supplementary light type: IR & White light

• Range supplementary light: Up to 30 meters

• Smart supplementary light: Yes

• IR wavelength: 850 nm

Video

• Main stream:

  • 50 Hz / 60 Hz: 20 fps @ 4256 × 1888

• Substream:

  • 50 Hz / 60 Hz: 20 fps @ 1200×536, 960×432

• Compression:

  • Hoofdstream: H.265+/H.265/H.264+/H.264

  • Substream: H.265/H.264/MJPEG

• Bitrate video: 32 Kbps to 16 Mbps

• Supported profiles:

  • H.264: Baseline, Main, High

  • H.265: Main

• Bitrate control: CBR, VBR

• Region of Interest (ROI): 1 fixed region

• SVC: Supported for H.264 and H.265

Audio

• Type: Monaural

• Sample Frequency: 8 kHz / 16 kHz

• Ambient Noise Filter: Yes

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC

• Bitrate audio:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • MP2L2: 32 to 160 Kbps

  • AAC-LC: 16 to 64 Kbps

Network

• Security:

  • Password Protection

  • Complex password

  • Watermark

  • Authentication (HTTP, WSSE, Open Network Video Interface)

  • Auditlog

  • Host authentication (MAC address)

• Simultaneous live view: up to 6 channels

• API: ONVIF (Profiles S, T, G), ISAPI, SDK

• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS

• Users/hosts: Up to 32 users, 3 levels (administrator, operator, user)

• Client software: iVMS-4200, Hik-Connect

• Browser support:

  • Live view with plug-in: IE 11

  • Local service: Chrome 80+, Firefox 80+, Edge 89+

Image settings

• WDR: 120 dB

• Signal-to-noise ratio: ≥ 52 dB

• Day/night switching: Day, Night, Automatic, Schedule

• Enhancement: BLC, HLC, 3D DNR

• Settings: Rotation, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via software or browser)

• Privacy masking: 4 programmable polygons

Interfaces

• Ethernet: 1 RJ45 10/100M self-adaptive port

• Storage: Support for microSD/SDHC/SDXC up to 512GB

• Built-in microphone: Yes

• Built-in speaker: Yes (max. 2 W, sound pressure max. 97 dB at 10 cm)

• Reset button: Yes

Events & Alarms

• Basic events: Motion detection (human/vehicle), tampering, exceptions

• Links:

  • Upload to FTP/memory card

  • Alert to monitoring center

  • Email notification

  • Activate recording

  • Snapshot

  • Audio alert

  • Strobe light

General

• Power Supply:

  • 12 VDC ± 25%, 0.83 A, max. 10 W

  • PoE: IEEE 802.3af, Class 3, max. 11.5 W

• Material:

  • Base: Metal

  • Cap: Plastic

• Dimensions: Ø130.1 mm × 109.1 mm

• Packing: 150 × 150 × 141 mm

• Weight: ± 586 g (packed ± 760 g)

• Storage & operating environment:

  • -30 °C to 60 °C, max. 95% RH (non-condensing)

• Languages: including Dutch, English, Turkish, Polish, Czech, Romanian, Slovak, Chinese, Vietnamese, Serbian

• General functions: Heartbeat, anti-flicker, password protection, password reset via e-mail
