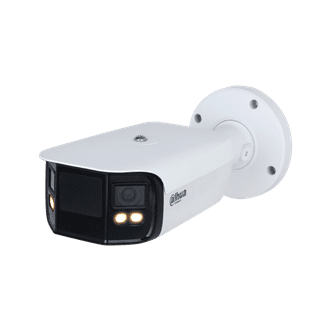

PFW5849-A180-E2-ASTE, Full-color WizMind ePoE 180° dual lens
Panorama cameras from Dahua are designed to be highly flexible and made suitable for multi-directional or wide-angle surveillance. By using multiple or fish-eye lenses, the camera creates a wide overview image with plenty of detail. The products are easy to install and support a variety of functions, such as face recognition, people counting and perimeter security.
The WizMind series is a professional line of intelligent cameras. The light-sensitive high-resolution sensor, auto-iris lens (vari-focal only) and the combination with image optimisation functions such as WDR and 3DNR ensure excellent images in a wide variety of conditions. WizMind cameras feature Starlight and Smart IR technology for dark and low-light situations. The cameras are equipped with artificial intelligence. This technology uses the camera to distinguish between objects and people. In addition, the camera is able to register external features of objects and process them into metadata.
WizMind camera features such as perimeter detection and people count based on AI deep-learning algorithms. The AI technology ensures accurate detection and reduces the amount of false alarms.
Technische specificaties:
| Camera | Number of image sensors: | 2 |
| | Beeldsensor: | Dual 1/1.8" CMOS |
| | Resolutie: | 4096 x 1800 |
| | Pixel count: | 8MP |
| | Minimum illumination strength (in colour): | 0.0005 lux |
| | Minimum illumination strength (LED on (black/white)): | 0 lux |
| | Verlichting: | White LED |
| | LED distance: | to 40m |
| | LED On/Off (Day/Night): | Auto/Manual |
| | Number of LED(s): | 4 LED |
| | Shutter speed: | 1/3 s-1/100,000 s |
| | Noise suppression: | 3DNR |
| Lens | Lens type: | Fixed lens |
| | Iris: | Fixed Iris |
| | Focal Distance: | 3.6 mm |
| | Maximum opening: | F1.0 |
| | Horizontal opening angle: | 180° |
| | Vertical opening angle: | 48° |
| | Focus control: | No |
| Video | Stream capability: | 3 streams |
| | Images per second (Main stream): | WDR off, 25fps @4096 × 1800
WDR on, 20fps @4096 × 1800 |
| | 2nd stream: | WDR off, 25fps @1024 × 452
WDR on, 20fps @1024 × 452 |
| | 3rd stream: | WDR off, 25fps @1920 × 832
WDR on, 20fps @1920 × 832 |
| | Bitrate: | H.264: 9 kbps-8192 kbps, H.265: 9 kbps-8192 kbps |
| | Dag/Nacht: | Colour, Black/White |
| | BLC mode: | BLC, HLC, WDR(140dB) |
| | Motion detection: | Aan/Uit |
| | |
| | Smart Functions: | AI Perimeter Protection |
| | | AI Motion detection |
| | | Heatmap |
| | | People Counting |
| | Smart LED: | Auto/Manual |
| | Defog: | Yes |
| | Privacy masking: | Yes |
| Audio | Built-in microphone: | Yes |
| | Audio input: | Yes |
| | Audio Output: | Yes |
| | Speaker: | Yes |
| Netwerk | Ethernet: | RJ-45 (10/100 Base-T) |
| | Storage option SD card: | Yes |
| | Maximum Storage Capacity SD card: | 512GB |
| Interface | Alarm: | Yes |
| | Number of channels in: | 1x Max 5 mA 3 V-5 VDC |
| | Number of channels out: | 1x Max 300 mA 12 VDC |
| Elektrisch | including power supply: | No |
| | Voeding: | 12V DC, PoE +(Type IEEE 802.3at), E-PoE |
| | Max Consumption: | Base: 4.8W (12VDC); 5.5W (PoE) Maximum (WDR + intelligence + warm light + SPK): 10.5W (12VDC); 11.8W (PoE) |
| Omgeving | Operating temperature: | -40°C ~ +60°C |
| | Water resistance: | IP67 |
| Constructie | Materiaal | Plastic/Metal |
| | Diameter | Ø120.1mm |
| | Height | 78.9mm |
| | Breedte | 128.2mm |
| | Depth | 301.2mm |
| | Gewicht: | 1.42 Kg |
