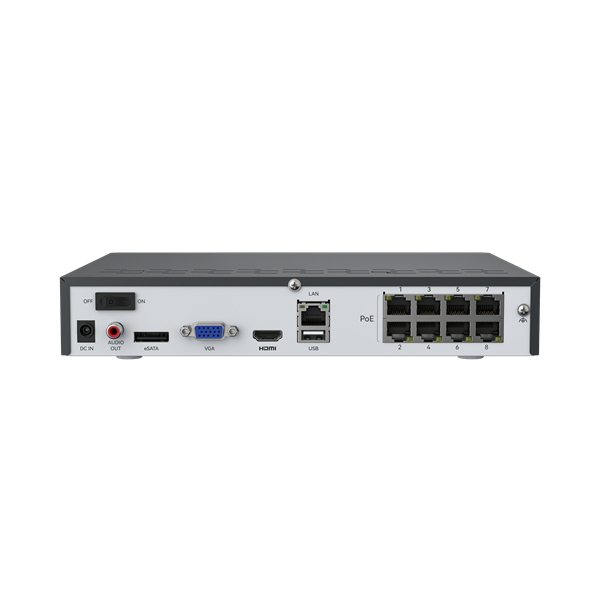

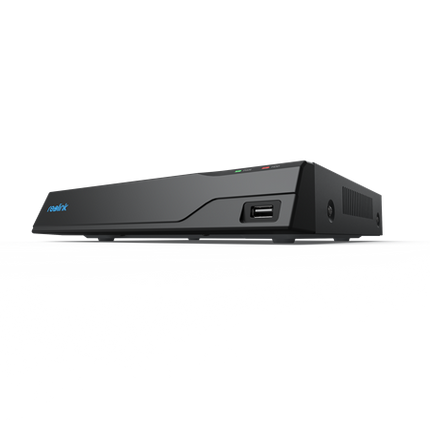

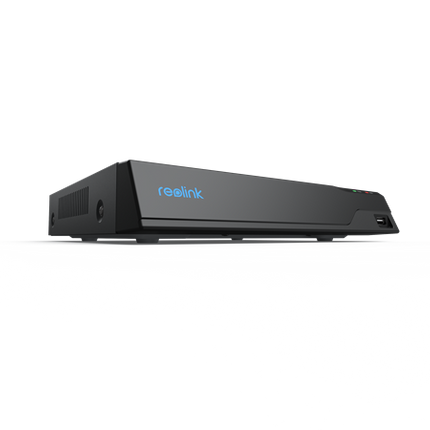

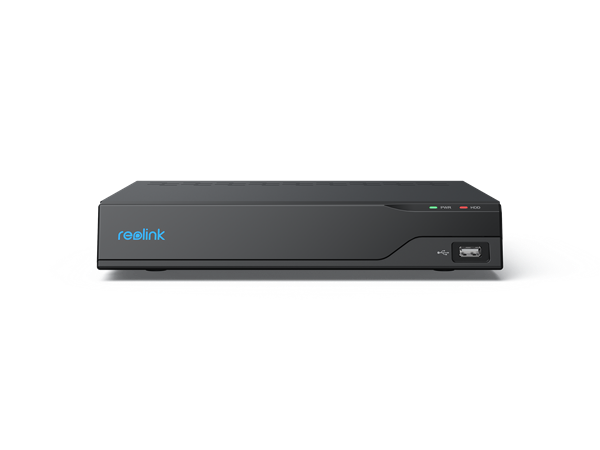

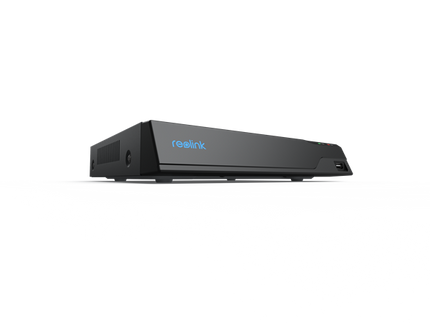

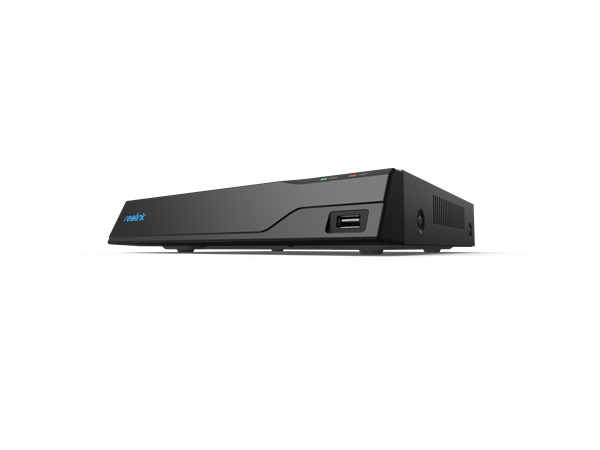

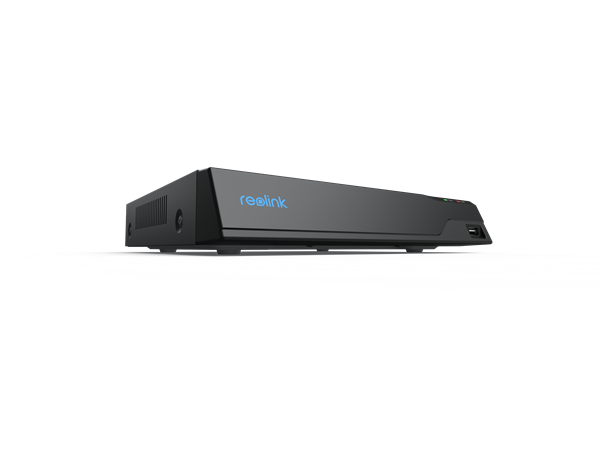

NVS8-NHD 8-channel PoE Network Video Recorder (without hard disk)

A true plug-and-play network video recorder! This NVS8NHD NVR features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power and video signal transmission. Easy wiring - the wiring process couldn't be easier for do-it-yourselfers.

If you want to record video 24/7 or manage multiple IP cameras, this Reolink NVR is the best choice.

• NHD so without hard disk (you can reorder this 3,5" HDD at the bottom of this article)
• Support for all cameras recording at the same time (up to 8 cameras).
• If you want longer recordings, try recording with motion detection. In this case, recording is activated only when motion is detected.
• You can install an external hard disk via e-SATA for more storage space (up to 6 TB).

Specificaties:

• Hardware
• Hardware - N7MB01

  Video/audio input
• IP video input - PoE IP camera x 8
• Audio input - Cameras with built-in microphone

  Video/audio output
• HDMI output resolution - 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
• VGA output resolution - 1920x1080, 1280x1024, 1280x720, 1024x768
• Audio output - 1-channel, RCA

  Decoding
• Video format - H.264, H.265
• Live view/playback resolution - 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p
• Synchronous playback - Up to 4 channels

  Hard disk
• SATA - 1 x SATA interface (supplied without hard disk)
• External hard disk - 1 eSATA interface for HDD
• Capacity - Up to 12 TB (max 6 TB capacity for each HDD)

  External interface
• USB interface - 2x USB 2.0
• Network interface - 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN - 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

  PoE
• Max power per port - 25W
• Supported standard - IEEE 802.3af/at

  Network
• Network protocols - HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
• Supported browsers - Edge, Firefox, Chrome, Safari
• Supported operating system - PC: Windows, Mac OS; smartphone: iOS, Android
• Max. User access - 20 users (1 administrator account and 19 user accounts); supports up to 12 simultaneous video streams (10 sub-streams and 2 mainstreams)

  General
• Power supply - DC 48V~53V
• Power consumption - <10W (without HDD and PoE)
• Working environment - Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%
• Dimensions - 260x41x230mm
• Weight - 1.4kg
