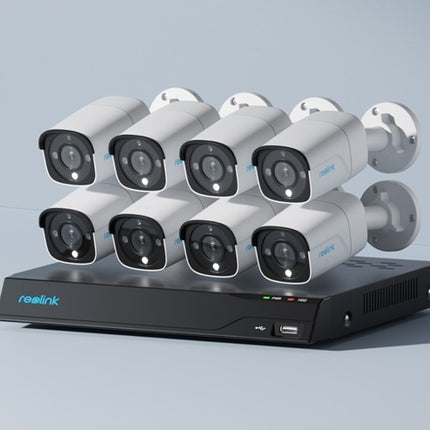

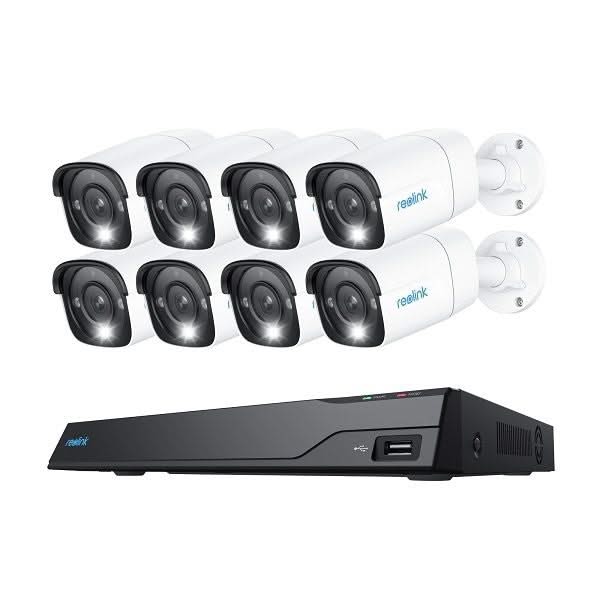

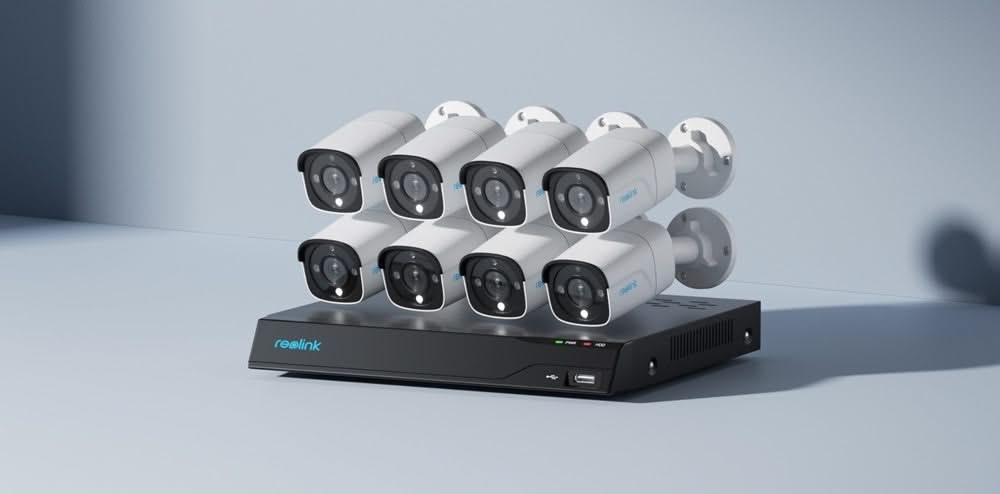

NVS16-12MB8, 12MP PoE Camera Set with 24/7 recording

Smart 12MP PoE security system with person, vehicle and animal detection. With the 16-channel NVR and 8 smart PoE outdoor... Read more

Delivery time 1 - 2 working days

14 667 kr12 121 kr Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    B2B Installateurs bestellen met korting

    Aanmelden B2B bedrijf

    Ben jij een professionele installateur die op zoek is naar nieuwe kansen en langdurige samenwerkingen? Sluit je dan aan bij ons groeiende netwerk van betrouwbare B2B-installateurs!

    Wat bieden wij jou?
    - Toegang tot hoogwaardige producten en projecten
    - Interessante marges en inkoopvoorwaarden
    - Technische ondersteuning en training
    - Een betrouwbaar partnerschap

    Aanmelden is eenvoudig:
    Vul het online formulier in en we nemen snel contact met je op voor een eerste kennismaking.

    Samen maken we elk project een succes.
    Meld je vandaag nog aan en groei met ons mee!

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days

    check Associated products for NVS16-12MB8, 12MP PoE Camera Set with 24/7 recording

    Size chart

    Smart 12MP PoE security system with person, vehicle and animal detection. With the 16-channel NVR and 8 smart PoE outdoor cameras, you have a complete, easy-to-install set that provides excellent security for your home or business!

    • Person, vehicle and animal detection
    • Power over Ethernet, install cameras quickly and easily
    • Non-stop recording with 4TB HDD (pre-installed) and storage capacity of up to 12TB. This PoE set supports all cameras to record continuously simultaneously
    • Can be expanded up to 16 cameras with Reolink cameras, bullet, dome or PTZ, 16MP, 12MP, 8MP, 5MP and 4MP
    • Easy to install, place your cameras wherever you want
    • IP66 weatherproof
    • Easy to manage. Access and control your cameras via Reolink app or client
    • Cameras (NVC-B12M) will not work without the NVR

      Specifications:
    NVS16-12MB8
    Model: NVC-B12M (does not work without NVR)
    Video & Audio
         		Sensor 1/2.49" CMOS Sensor
    Resolutie 4512 x 2512 (12 Megapixel) @20 frames/sec
    Lens f=4.0mm; F=1.6, with IR-cut
    Kijkhoek Horizontal: 104°, Vertical: 50.6°
    IR Night Vision Up to 30 metres (LED: 2pcs/1.8W/850nm)
    Day/night mode Auto switching with IR-cut filter
    Audio Built-in mic & speaker
    Video Format H.265
    Stroom
         		PoE IEEE 802.3af, 48V Active
    DC power DC 12.0V, 1A, <12W
    Interface
         		Power DC power port
    Systeem Reset button present
    Ethernet One 10M/100Mbps; RJ45
    Ethernetwork Micro SD card slot (Max 256GB)
    Software features
         		Frame rate 2fps - 20fps
    Code rate Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)
    Substream: 128Kbps - 1228Kbps (default: 1024Kbps)
    Browser supported Edge, Chrome, Firefox, Safari
    OS supported PC: Windows, Mac OS; Smartphone: iOS, Android
    Protocols HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
    Max users 20 users (1 admin & 19 users); up to 12 video streams simultaneously (10 sub streams & 2 main streams)
    Works with Google Assistant, Reolink NVR
    Smart alarm Motion detection; person detection; vehicle detection; pet detection
    Recording modes Movement-activated (default); on schedule
    Algemeen Werkomgeving Operating temperature -10° ~ 55° C;
    Operating air humidity 10%~90%
    Waterproof IP66
    Afmeting 68x63x188mm
    Gewicht 452 gr
    Garantie garantie 2-jaar

    Model: Reolink NVS16
    Video / Audio IP video input PoE IP Camera x 16
    Video output HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
    VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
    Audio input Cameras with built-in microphone

    Externe interfaces     		Video out VGA, HDMI
    Ethernet port 1, RJ-45, 10/100/1000Mbps self-adaptive Ethernet interface for LAN/WAN
    16, RJ-45, 10/100Mbps self-adaptive PoE Ethernet interface for IP camera
    USB port 2x USB 2.0
    Audio port 1 audio out channel, RCA
    Opnemen
         		Video compression H.264, H.265
    Live View/Playback 12MP/8MP/5MP/4MP/3MP/1080P/720P
    Synchronous Playback 1-4 channels (supports 1 channel playback if watching in 8MP or higher)
    Recording modes Person/vehicle/pet detection; Motion-triggered detection/ 24/7 recording
    Opslag Internal HDD 2 x SATA interface (1x4TB HDD included)
    External HDD No
    Maximum capacity 12TB (Max 6TB/ HDD)
    PoE Max power consumption per port 25W
    Standard supported IEEE 802.3af/at
    Netwerk Network Protocol HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP
    Browser supported Edge, Firefox, Chrome, Safari
    OS supported PC: Windows, Mac OS; SmartPhone: iOS, Android
    Max. users 20 users (1 admin & 19 users); up to 12 video streams simultaneously (10 sub streams & 2 main streams)
    Algemeen Werkomgeving Temperature: -10°~+45°, Humidity: 10%~90%
    Current DC 48V~54V
    Current consumption <10W (without HDD&PoE)
    Afmeting(mm) 330(W) x 45(H) x 285(D)
    Weight (without HDD) 1.8 kg
