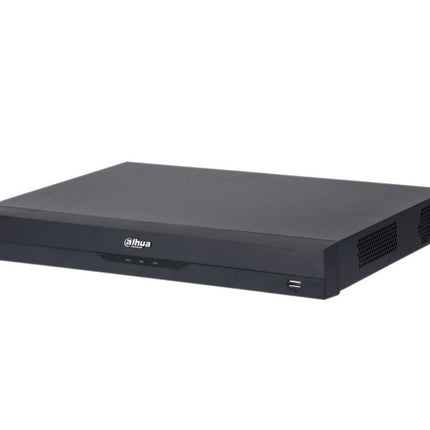

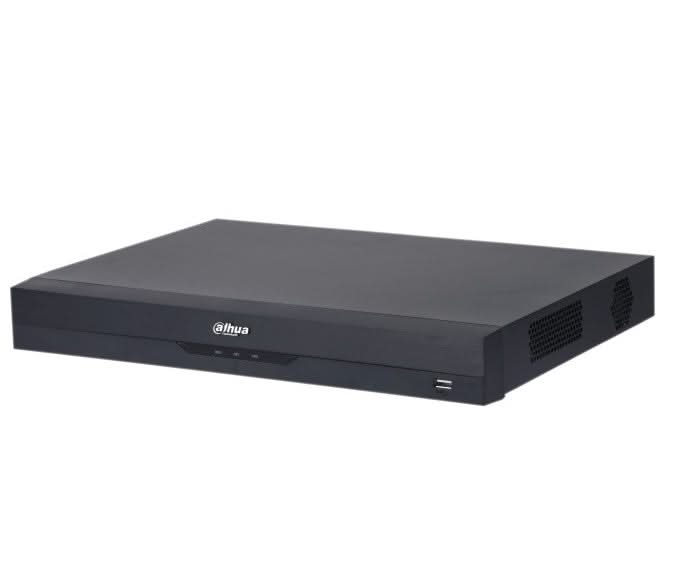

NVR2216-16P-i2, 16 Channel NVR, 16x PoE, WizSense

The Dahua NVR2216-16P-I2 is an advanced network video recorder (NVR) suitable for recording and managing video streams from security cameras within a network. This model offers excellent performance, robust functionality and advanced features for use in both commercial and residential environments.

With 16 Power over Ethernet (PoE) ports, up to 16 IP cameras can be connected directly to the NVR, sending both power and data to the cameras via a single cable. This simplifies installation and saves costs for additional cabling and power.

Key Features:

• 16 PoE ports.: Supports direct connection of 16 IP cameras with power over Ethernet.

• Maximum resolution of 8MP: Supports high-resolution recording, ideal for detailed images.

• H.265/H.264 Video Codec: Provides efficient video compression, resulting in less storage space and better network bandwidth.

• Records up to 16 cameras simultaneously: Helps manage multiple cameras for complete monitoring of larger areas.

• HDMI and VGA output: Ability to connect two screens simultaneously for comprehensive visual control.

• Compatibility with Dahua's VMS.: Easily integrated into larger surveillance systems with Dahua's video management software.

Reliability and Security:

• Redundancy and Failover: Ensures continuous reliable system operation even in the event of network problems.

• Secure access: The NVR provides secure management of recordings and access to the system via a web browser or app.

• Smart Detection: Integration of intelligent detection of objects, faces and other relevant incidents.

The Dahua NVR2216-16P-I2 is the ideal solution for businesses and homes looking for a reliable, scalable and easy-to-use video surveillance solution. With its robust performance, energy efficiency and advanced technologies, the model offers excellent value for money.

Specifications:

System

• Main Processor: Industrial embedded processor

• Operating system: Embedded Linux

• Operating interface: Web; local GUI

AI

• AI by Camera: Face detection; face recognition; perimeter security; SMD Plus

• AI per Device: Face detection; face recognition; perimeter security; SMD Plus

Perimeter security

• Perimeter performance AI per Device (Number of Channels): 1

• Perimeter performance AI per Camera (Number of Channels): 4

Face Detection

• Face Features: 6 features: Gender; age group (6); glasses; facial expressions (8); mouth mask; beard

• Face detection performance AI per Device (1080P) (Number of Channels): 1 (up to 12 face images/second)

• Face detection performance AI per Camera (Number of Channels): 5

Face Recognition

• Face database capacity: Up to 10 face databases with 5,000 images

• Face Recognition Performance AI per Device (1080P) (Number of Channels): 1 (up to 4 face images/second)

• Face Recognition AI performance per Camera (Number of Channels): 5

SMD Plus

• SMD Plus per Device: 4

• SMD Plus per Camera: 6-channel SMD Plus (AI per camera): Detects wires and human or vehicle intrusion; filters false alarms caused by leaves, raindrops and change in brightness

Video

• Access Channels: 16 channels

• Network bandwidth:

  • AI out: Access: 144 Mbps; Storage: 144 Mbps; Transit: 72 Mbps

  • AI on: Access: 72 Mbps; Storage: 72 Mbps; Transit: 36 Mbps

• Resolution: 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1

• Decoding Capacity:

  • AI out: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps

  • AI on: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps

• Video output: 1 × VGA, 1 × HDMI (simultaneously)

• Multiple screen display: 1, 4, 8, 9, 16 views

• Third party camera access: Onvif

Compression

• Video: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

• Audio: PCM; G711A; G711U; G726

Network

• Network protocol: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, etc.); P2P; Auto Registration

• Access via Mobile Phone: Android; iOS

• Interoperability: ONVIF (profile T; profile S; profile G); CGI; SDK

• Browser: Chrome; IE9 or later; Firefox

Recording and Playback

• Multi-channel Playback: Up to 16 channels

• Recording mode: Manual recording; alarm recording; motion detection recording; scheduled recording

• StorageLocal HDD and network

• Backup: USB device

• Playback functions:

  • 1. Playback; pause; stop; fast forward; fast reverse; rewind; frame-by-frame playback

  • 2. Full screen; backup (video clips/files); partial zoom; audio on/off

Alarm

• General Alarms: Motion detection; privacy masking; video loss; PIR alarm; IPC alarm

• Anomaly Alarm: Camera offline; storage error; disk full; IP conflict; MAC conflict; login security; cyber security error

• Intelligent Alarm: Face detection; face recognition; perimeter protection (intrusion and wire); IVS; SMD Plus

• Alarm link: Recording; snapshot; buzzer; log; preset; e-mail; tour

External Ports

• HDD: 2 SATA ports, up to 10 TB. Maximum HDD capacity varies with ambient temperature

• USB: 1 × front USB2.0; 1 × rear USB2.0

• HDMI: 1 (maximum resolution: 4K)

• VGA: 1

• Network: 1 × RJ-45, 10/100/1,000 Mbps

• PoE: 16 × PoE ports, 10/100 Mbps

• RCA Input: 1

• RCA Output: 1

• Alarm Input: 4

• Alarm Output: 2

General Parameter

• Power Supply: 100-240V, 47-63HZ, 3.5A
