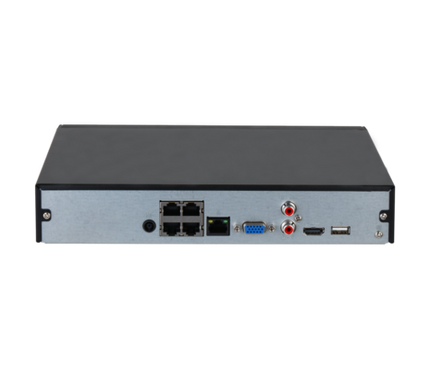

NVR2104HS-P-S3, 4-channel Compact NVR, Ultra HD, PoE

Note! Hard disk is not included!

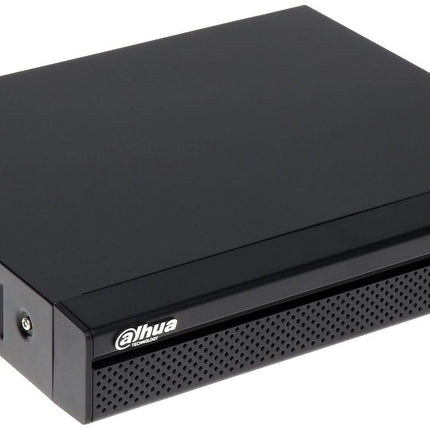

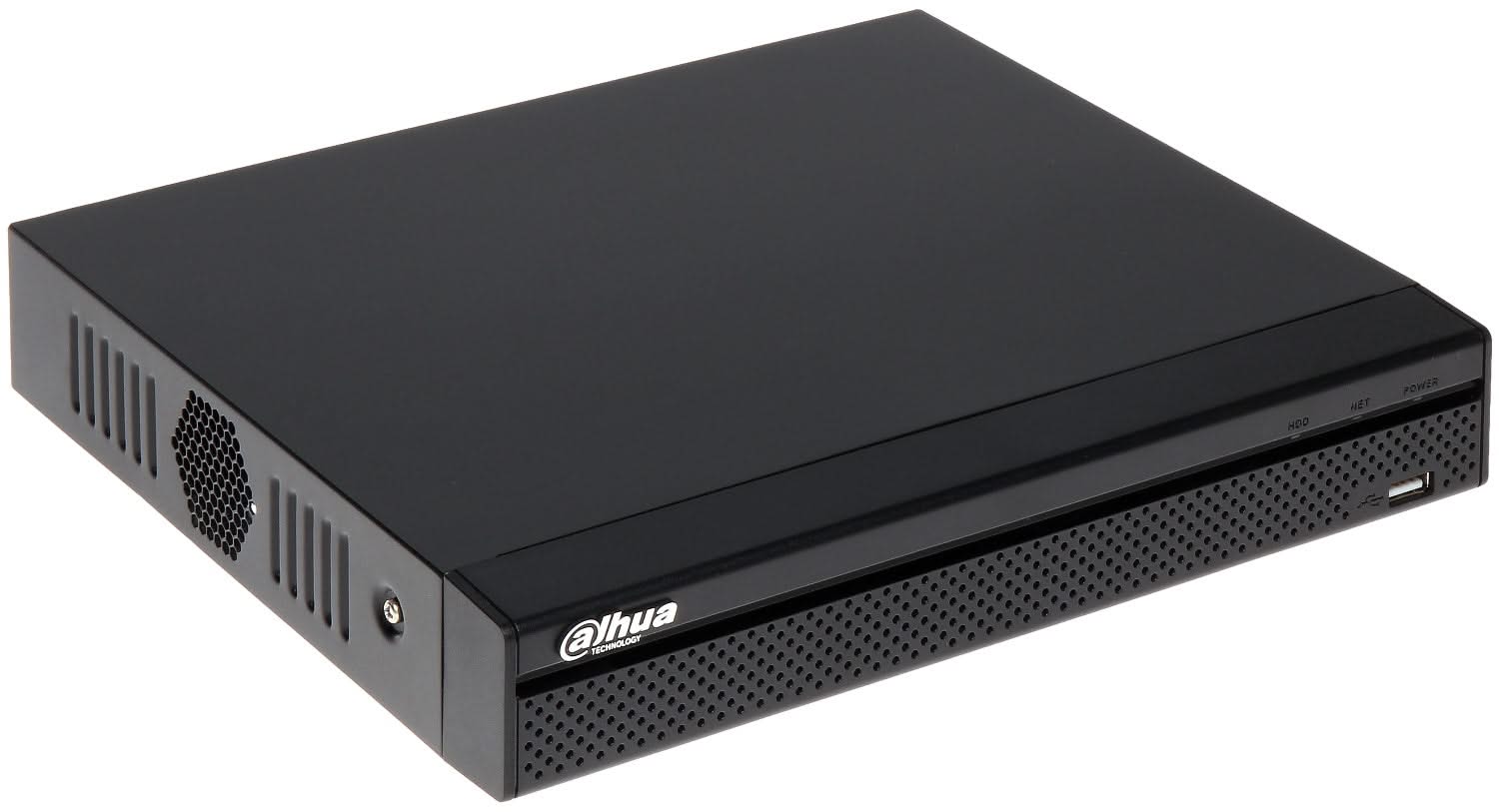

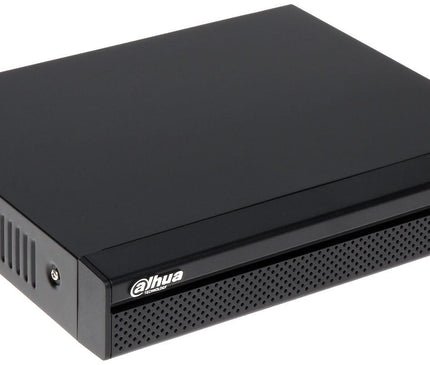

The Dahua NVR2104HS-P-S3 is a PoE Network Video Recorder (NVR) to which 4 IP cameras can be connected for recording and managing camera images. Its great functionality, ease of installation and high usability make the NVR ideal for use in homes, shops and businesses alike.

Up to 4 IP cameras can be connected to the NVR. The NVR2104HS-P-S3 features 4 PoE ports, allowing the connected cameras to be powered over 1 network cable as well. This makes installation very easy. The NVR can operate standalone but can also be connected to the network. The NVR can then be accessed via a web browser, Dahua video management software and with the free Dahua app for a smartphone and tablet.

The NVR features an HDMI and VGA output for connecting to a normal TV for displaying images, among other things. There is also a USB connection for connecting the supplied mouse.

Specifications:

• Systeem

  • Main processor: industrial embedded processor
  • Operating system: Embedded Linux
  • Operating interface: Web; Local GUI

• AI

  • AI by Camera: Perimeter Security; SMD Plus

• Perimeterbeveiliging

  • Perimeter security performance by AI (number of channels): 4
  • SMD Plus:
    • 4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus, reduction of false alarms due to leaves, rain and changing light conditions

• Audio and Video

  • Access channels: 4 channels
  • Network bandwidth:
    • Access: 80 Mbps
    • Access: 80 Mbps
    • Forwarding: 60 Mbps
  • Resolution: 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1
  • Decode capacity:
    • 1-kanaals 12MP@30 fps
    • 1-kanaals 8MP@30 fps
    • 2-kanaals 5MP@30 fps
    • 3-kanaals 4MP@30 fps
    • 6-kanaals 1080p@30 fps
  • Video output: 1 × VGA, 1 × HDMI (simultaneously)
  • Multi-screen display: 1, 4 views
  • Third-party camera access: Onvif

• Compressiestandaard

  • Video Compression: Smart H.265; H.265; Smart H.264; H.264
  • Audio Compression: PCM; G711A; G711U; G726

Netwerk

• Network protocol: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP filter; DDNS; Alarm server; IP search (supports Dahua IP cameras, DVRs, NVS, etc.); P2P
• Access via Mobile Phone: Android; iOS
• Interoperability: ONVIF (profile T/S/G); CGI; SDK
• Browser: Chrome; IE 9 or later; Firefox

Recording and Playback

• Multichannel Playback: Up to 4 channels
• Recording Mode: Manual recording; alarm recording; motion detection recording; scheduled recording
• Storage method: Local HDD and network
• Back-upmethode: USB-apparaat
• Playback functions:
  • 1. Play back; pause; stop; fast forward; fast reverse; rewind; play by frame
  • 2. Full screen; backup (video clips/files); partial zoom; audio on/off

Alarm

• General Alarm: Motion detection; privacy masking; video loss; PIR alarm
.
• Anomaly Alarm: Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security error
• Intelligent Alarm:Perimeter security; SMD Plus
• Alarm link: Recording; snapshot; buzzer; log; preset; e-mail; tour

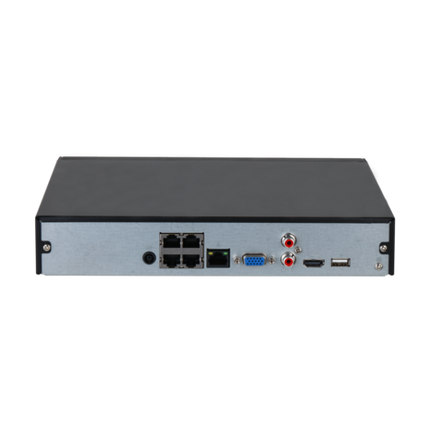

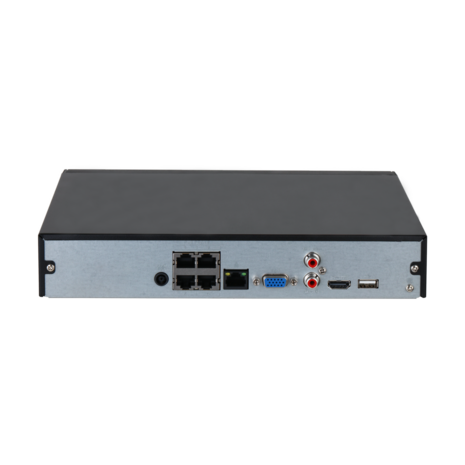

Poorten

• Audio Input: 1
• Audio Output: 1
• HDD interface: 1 SATA port, up to 16 TB. Maximum HDD capacity varies with ambient temperature
• USB: 1 for front USB 2.0 port, 1 for USB 2.0 port at the back
• HDMI: 1
• VGA: 1
• Network port: 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
• PoE Port: 4 × PoE ports, 10/100 Mbps

Algemeen

• Power supply: 48/53 VDC, 1.25/1.13 A
• Power consumption:
  • Total output of NVR is ≤ 10 W (without HDD)
  • Total output of PoE is 36 W, maximum output power per port is 25.5 W
• Net Weight: 0.85 kg (1.87 lb)
• Gross Weight: 1.75 kg (3.86 lb)
• Product dimensions: 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H)
• Packaging dimensions: 117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H)
• Werktemperatuur: -10 °C to +55 °C (14 °F to +131 °F)
• Working humidity: 10%-93% (RH)
• Installatie: Rack or desktop

Bestelinformatie

• Type: 4 Channel NVR
• Model: DHI-NVR2104HSP-S3
• Description:4 Channel Compact 1U 1HDD 4PoE Network Video Recorder
