Product form

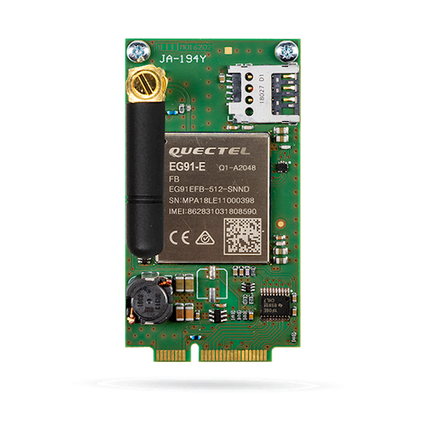

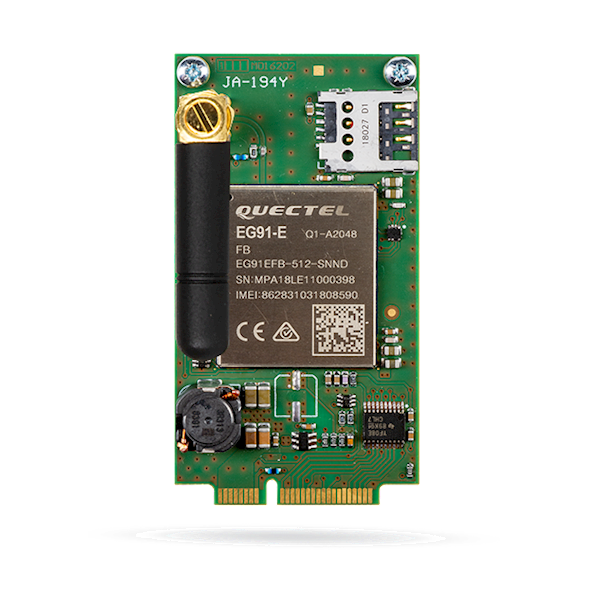

JA-194Y, GSM 4G communicator for the JA-103K/107K

Main features:- 4G Dialer for the Jablotron 103K and 107K systems- Power source for the module 9-15 V DC (from the control... Read more

Delivery time 1 - 2 working days

5 863 kr4 845 kr Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

    B2B Installateurs bestellen met korting

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days

    check Associated products for JA-194Y, GSM 4G communicator for the JA-103K/107K

    Size chart

    Main features:

    - 4G Dialer for the Jablotron 103K and 107K systems
    - Power source for the module 9-15 V DC (from the control panel)
    - Average power consumption 9 mA (depending on the strength of the GSM signal)
    - Current power consumption 720 mA
    - 2G (GSM, EDGE) 900/1800 MHz GSM communication band
    - 3G 900/2100 MHz (B8, B1) GSM communication band
    - 4G (LTE) 800/900/1800/2100/2600 MHz (B20,B8,B3,B1,B7) GSM communication band
    - I&HAS classification Safety grade 2/Environmental class II
    - Dimensions/weight 70mm x 37mm x 25mm/23gr.
    - Operating environment General solution for internal use
    - Operating temperature -10 °C to +40 °C
    - Average operating humidity 75 % RH, non-condensing
    - Compatible with RMT (ARC receiver) According to communication protocols
