    Product Description

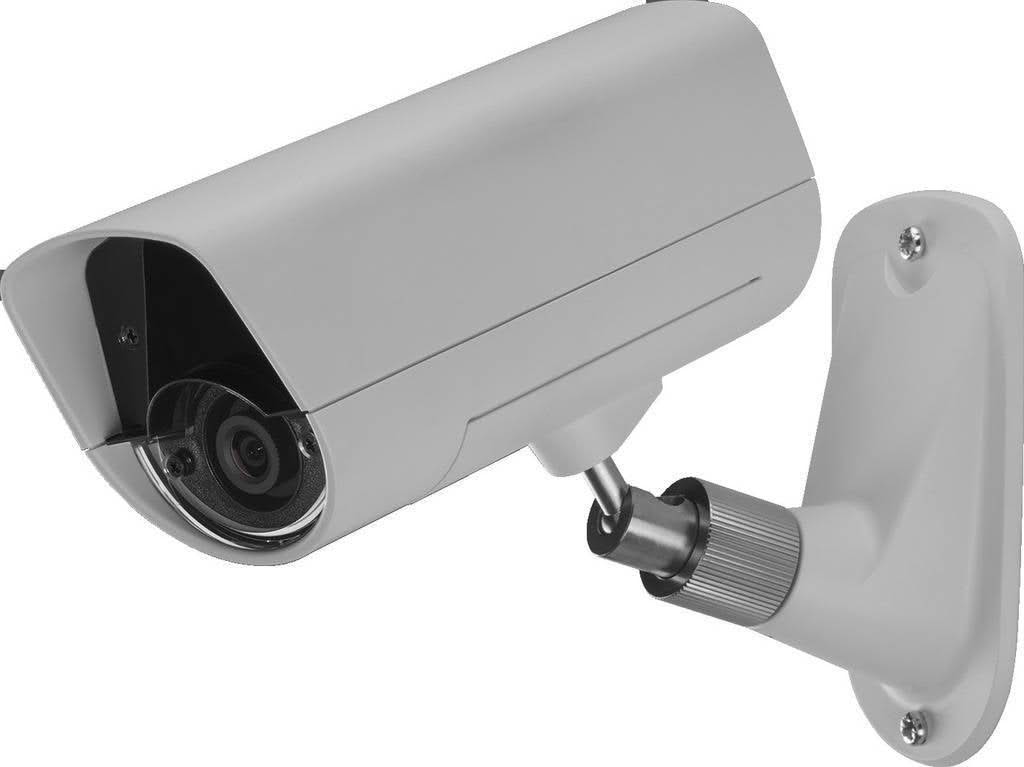

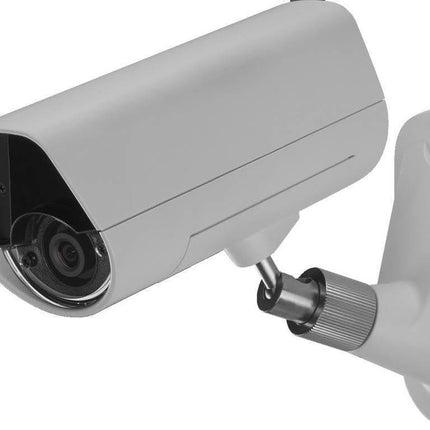

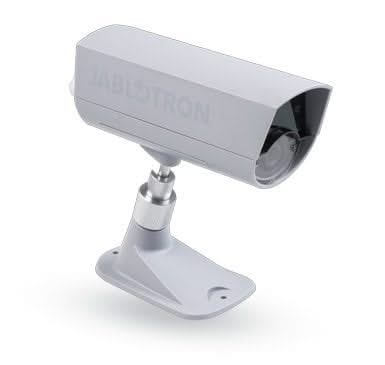

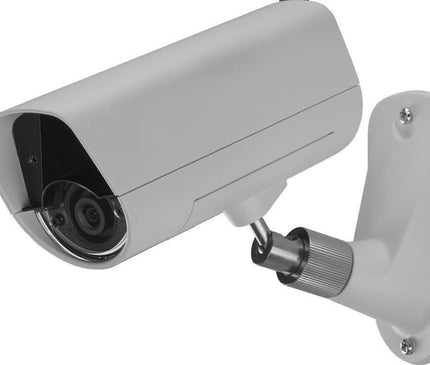

    Jablotron JA-110C PIR with photo camera

    The JA-110C PIR with photo camera is used to take photos of a monitored area and transmit them to the control panel of the security system JABLOTRON 100.

    The taking of a picture is activated either, by the activation of a PG output, or by a request to take a picture from the MyJABLOTRON Web Self-Service, or by another detector (through PG activation). This setting is complemented by an optional function, where pictures are taken continuously and stored temporarily. They are later deleted, if there is no detector activation. If detector activation occurs at any time, a number of pre-activation photos are saved and post-activation photos are taken and also stored in memory, with a pre-selected number of photos taken during and after detector activation. The camera is equipped with an infrared auxiliary light. The camera's ambient light sensor can activate a PG output in the system (it can be used, for example, to switch on an external IR auxiliary light). The camera is monitored and protected against tampering by a tilt detector. For outdoor use, when there is a risk of direct contact, an additional protective housing is recommended. The camera occupies one position in the system.

    Specifications;
    Power supply via the control panel bus 12 V (9 - 15 V)
    Current consumption (idle mode/with additional IR illumination) 15 mA/150 mA
    PIR detection angle of the camera 75°
    Range of the additional IR illumination max. 12 metres
    Camera resolution LQ 320x240; HQ 640x480 pixels
    Environments according to EN 50131-1, IV. outdoor, general
    Operating temperature range -20 to +60°C, max humidity 75%
    Ingress protection class IP65
    Sizes 155 x 75 x 55 mm
    Classification level 2 In accordance with EN 50131-1, EN 50131-3
    In accordance with EN 50130-4, EN 55022, EN 50581
