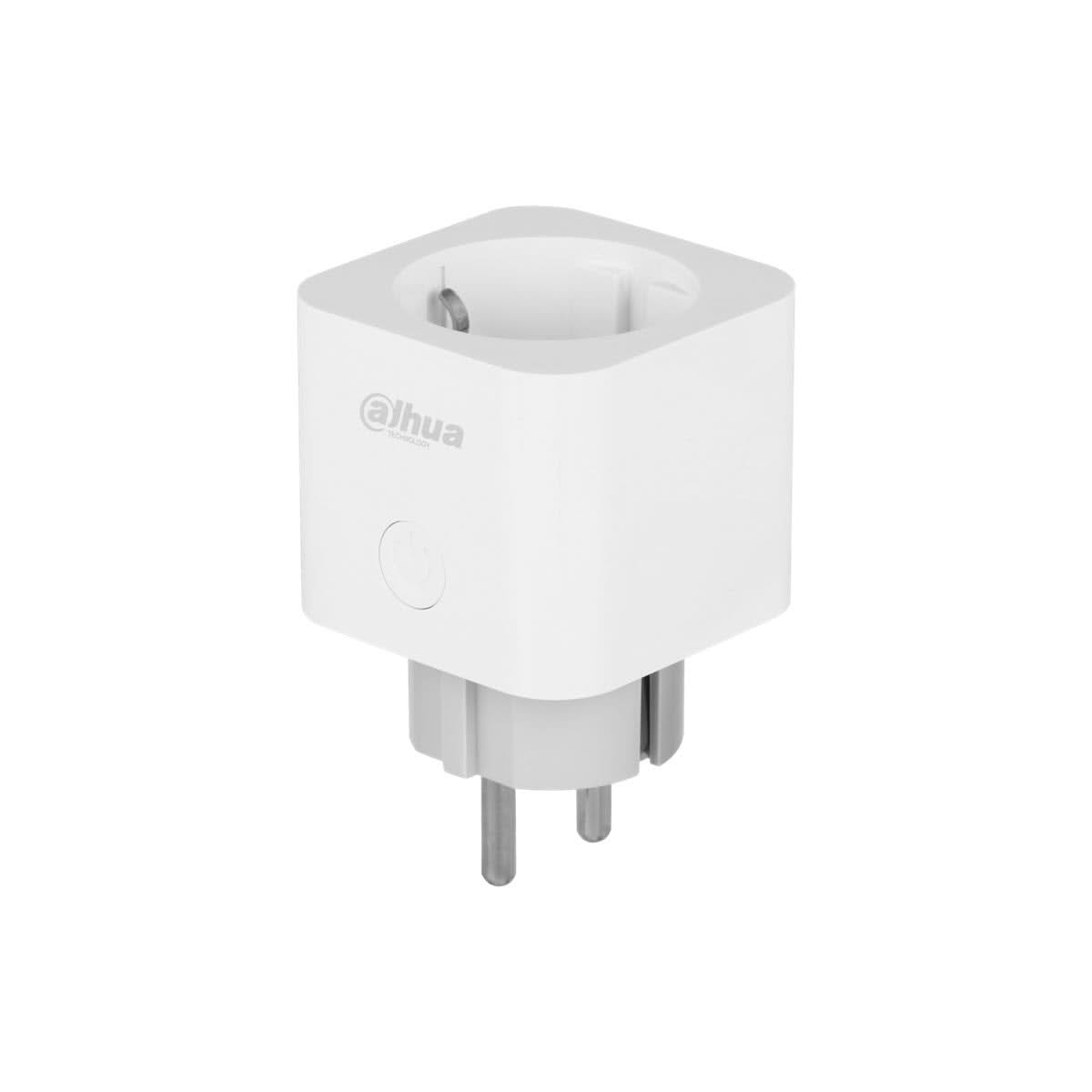

ICS1-W2(868), Wireless smart plug with AirShield

The Smart Plug can be controlled remotely via the mobile app, switched on schedule on and off, and set to activate automatically when alarms are triggered or when the system is switched on or off.

• two-way RF communication.
• Displays status with an LED indicator.
• Supports cloud updates and automatic recovery after a failed update.
• Provides protection against overcurrent, overvoltage and overheating.
• Measures voltage, current and temperature.

Specificaties:

• Port: Relay output, 1 port, NO/NC (100-240 VAC, max 16 A)
.
• Wireless:
  • Indicator light, 1 indicator light, displays multiple statuses:
    • Flashing green: pairing
    • Continuous green: circuit closed
    • Light off: circuit open
• Remote Update: Supports cloud update
• Button: 1 button, performs multiple actions (open/close circuit, restore to factory settings and pairing)
• Signal strength: Supports signal strength detection
• Frequency range: 868-868.6 MHz
• Communication distance: In an open environment: 1,600 m (5249.34 ft)
.
• Maximum Power: 865-868.6 MHz @ 16.15 dBm
• Communication Mechanism: Two-way communication
• Encryptie: AES-128
• Frequentieverspringing: Ja

  Algemeen


• Operating temperature: Indoor: -10 °C to +55 °C (+14 °F to +131 °F)
.
• Operating humidity: 10%-90% (RH), non-condensing
• Storage temperature: -10 °C to +55 °C (+14 °F to +131 °F)
.
• Humidity: 10%-90% (RH), non-condensing
• Power source: 100-240 VAC, 50/60 Hz
• Product dimensions: 52 mm × 52 mm × 82 mm (2.05" × 2.05" × 8.32")
• Installation: With socket/2-pole
• Net weight: 83 g (0.18 lb)
• Stroomverbruik: 0.3 W

  Certificeringen


• CE

  Behuizingsmateriaal


• PC

  Gegevensmonitoring


• Data monitoring:Yes
• Data type: Current, voltage, temperature
• Accuracy: Protection range: 0 A-16 A, measurement accuracy: level 1.0 and higher
.
