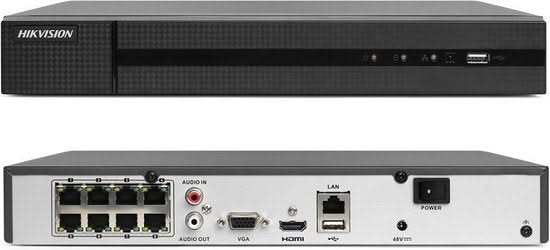

HWN-4108MH-8P, 8 Channel 8Mp 4K NVR, PoE

Notice! Hard disk is not included.

Hikvision network recorder (NVR) that has 8 channels to connect IP cameras with image quality up to 4K (8 Megapixel). The NVR recorder has a built-in PoE switch making it possible to power the cameras directly over the network cable. The recorder has 1 HDMI input for displaying images of up to 4K on a monitor and 1 VGA input for streaming images up to Full HD. The Hikvision NVR recorder supports a maximum resolution of 8 megapixels.

Specifications:

• Motion detection 2.0

• Human/Vehicle Analysis 4-channels

Video and Audio

• IP Video Input 8-channels

• Incoming Bandwidth 80 Mbps

• Outgoing Bandwidth 80 Mbps

• HDMI Output

  • 1-channel, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

• VGA output

  • 1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

• Video output mode HDMI/VGA simultaneous output

• Audio output 1-channel, RCA (Linear, 1 KΩ)

• Two-way audio 1-channel, RCA (2.0 Vp-p, 1kΩ)

Decoding

• Decoderingsformaat H.265+/H.265/H.264+/H.264

• Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Synchronous playback 8 channels

• Decoding capability 1-channel@8 MP (30 fps)/3-channels@4 MP (30 fps)/6-channels@1080p (30 fps)

• Stream Type Video, Video & Audio

• Audio Compression G.711ulaw/G.711alaw/G.722/G.726

Network

• External connection 32

• Network protocol:

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network interface 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

• Interface 8-channel, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Power ≤ 75 W

• Standard IEEE 802.3 af/at

Auxiliary connections

• SATA 1 SATA interface

• Capacity Up to 8 TB capacity per drive

• USB interface 2 × USB 2.0

• Alarm In/Out N/A.

General

• Supply voltage 48 VDC, 1.88 A

• Consumption ≤ 10 W (without HDD and PoE disabled)

• Operating temperature -10 °C to 55 °C (14 °F to 131 °F)

• Working humidity 10% to 90%

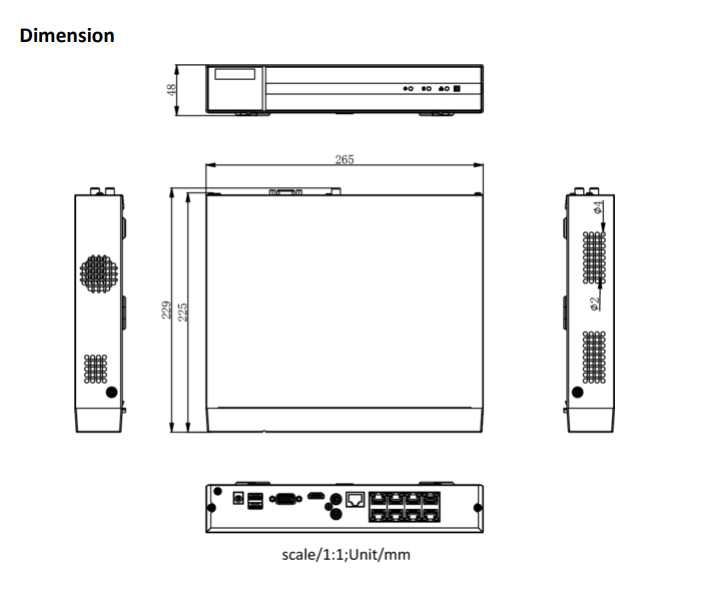

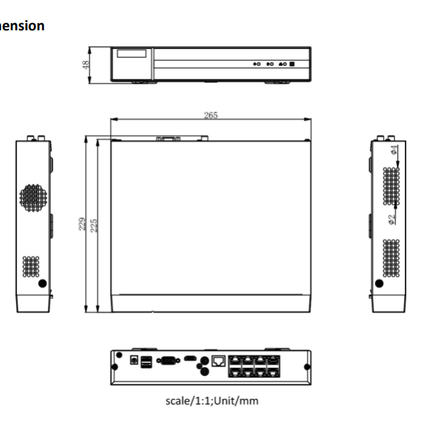

• Dimensions (W × D × H) 265 × 225 × 48 mm (10.2" × 8.9" × 1.9")

• Weight ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC Part 15 Subpart B, ANSI C63.4-2014

• CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
