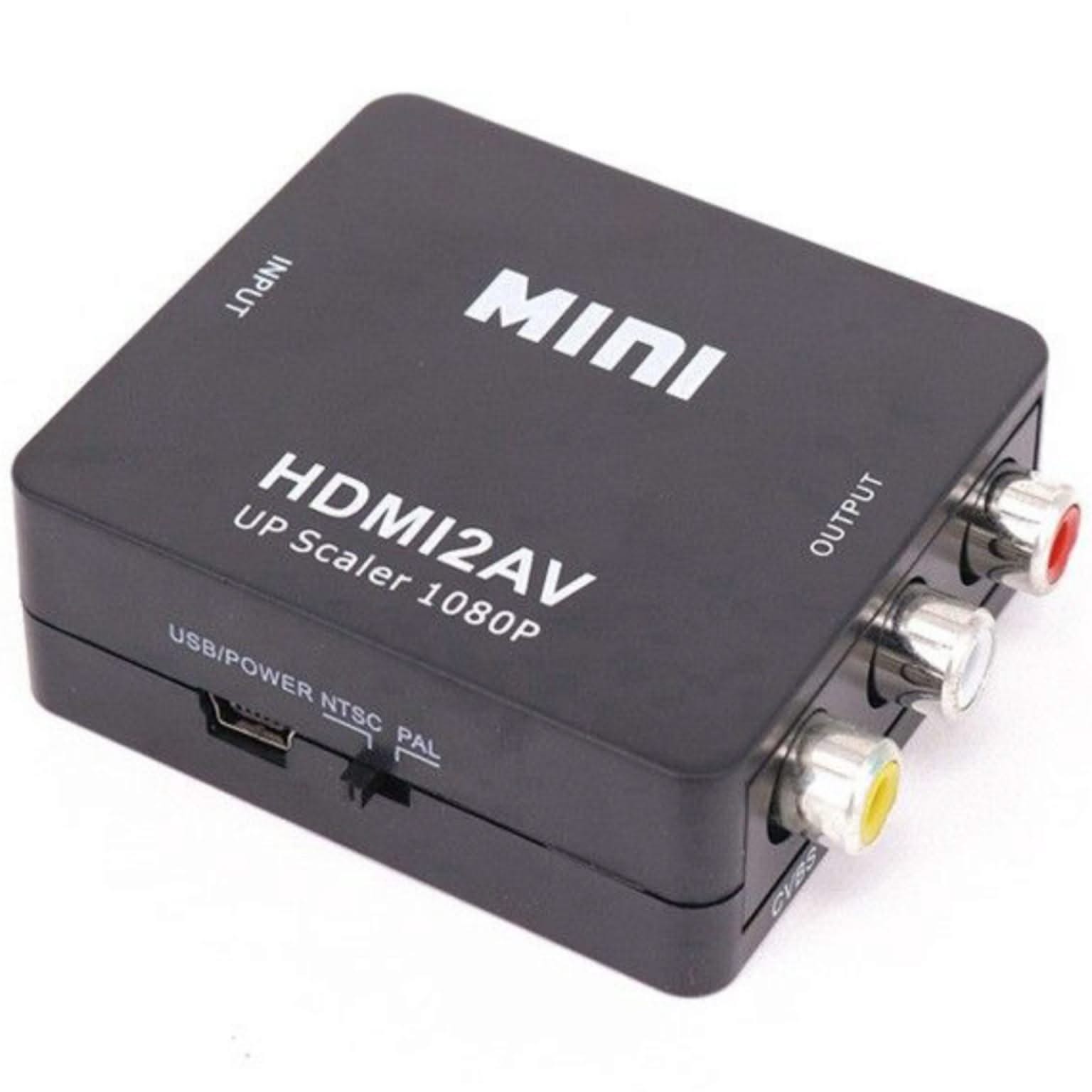

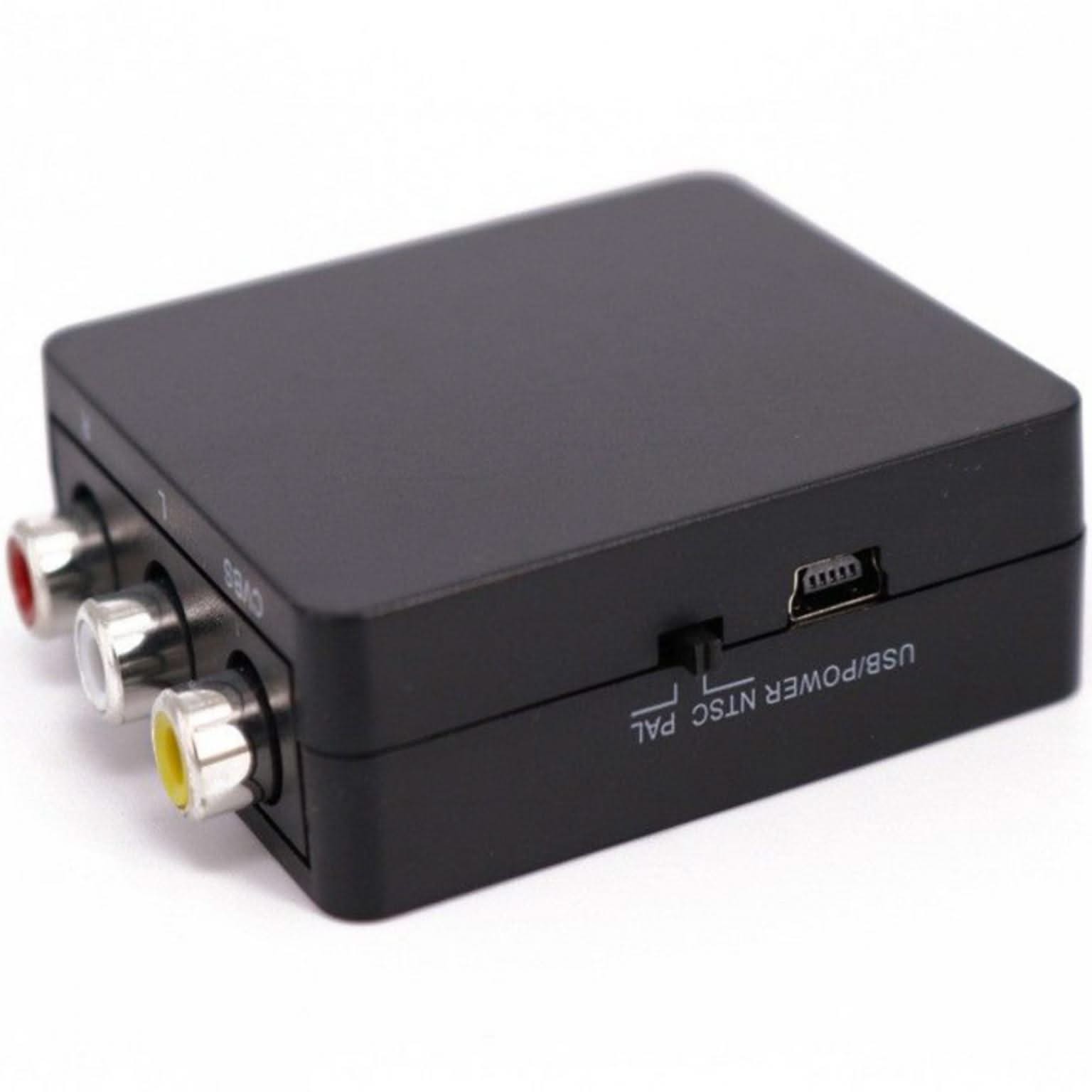

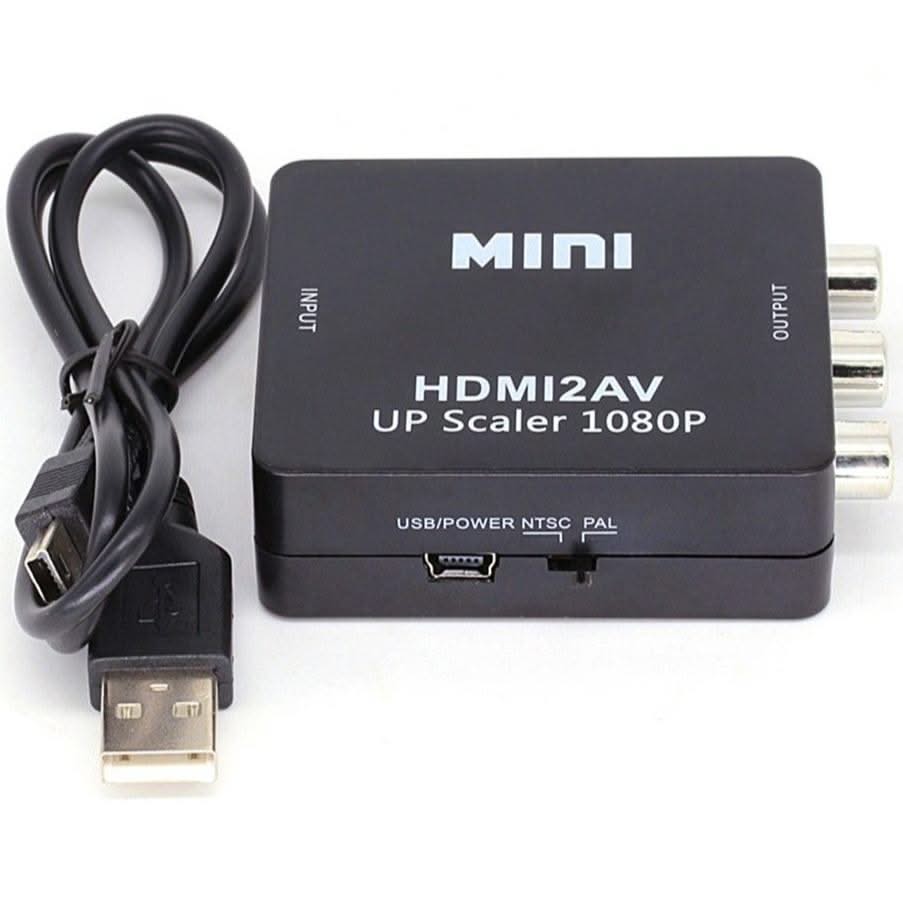

HDMI to Composite adapter

HDMI to composite adapter for connecting monitors with composite inputs. The converter is therefore equipped with several connectors and needs to be supplied with an external power source. For power supply, a mini USB to USB A cable is included. The converter can then be used by connecting an HDMI cable to the designated port for input. This allows the signal for picture and sound to be delivered. For output, three female tulip jacks are provided. The red and white connections are for transmitting the audio and the yellow port is for the picture.

Use

By using the HDMI Adapter to Composite Converter, it is possible, for example, to connect an older device with a composite connection with an HDMI cable. For example, you can think of connecting an outdated DVD player or game console with a television. Power is supplied via the mini USB connector on the converter. To this you connect the supplied cable, which is then connected to a USB A port. This can be done with an adapter for a wall outlet or to a USB A port on the television, for example. An adapter to connect the cable to mains power is not included.

Features

- The converter is compatible with HDMI 1.3
- Support is provided for NTSC and PAL video formats
- Instantly ready to use without adjusting settings

Technical Information

The Allteq HDMI to composite converter is a convenient and compact product. The converter is ready to use immediately, without installing software or adjusting settings. The included mini USB to USB A cable is for supplying power. For this purpose, there is a mini USB female connector on the device. Next to this connector is a switch, which allows you to choose the video format. As a user, you have the choice of PAL or NTSC video format. The converter is compatible with HDMI 1.3 and has one HDMI female connector for input. For output, there are three female tulip connections available. These are two connections for audio and one connection for video. The Allteq HDMI to composite converter supports up to 1080p resolution.

 Specifications: - Brand: Allteq
- Product: HDMI to composite converter
- Color:black
- Length: 15 centimeters
- Width: 18 centimeters
- Height: 2.2 centimeters
- Weight: 60 grams
- Connection 1 input: HDMI female
- Connection 2 input: USB A 2.0 female
- Connection 1 output: Video composite female
- Connection 2 output: RCA female
- HDMI resolutions supported: 640 x 480, 800 x 600, 1280 x 1024, 1360 x 768, 1600 x 1200, 1920 x 1080, 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
- Frequency: 60 Hertzv - CVBS output: PAL, NTSC_M and NTSC_J
- Power supply: via included mini USB to USB A cable
- Warranty: 5 years
