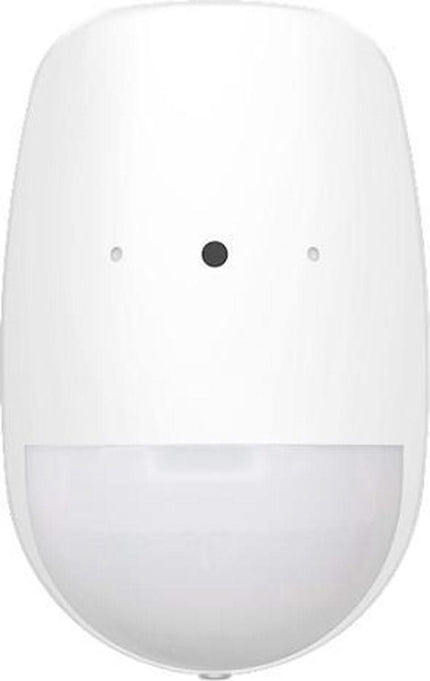

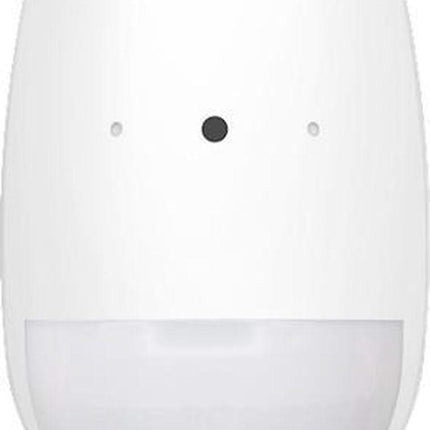

DS-PDPG12P-EG2, wired PIR glass breakage detector

DS-PDPG12P-EG2, wired PIR glass break detector PIR detection range: 12m / 85.9° Glass breakage range: 8m / 120° Up to... Read more

Delivery time 1 - 2 working days

925 kr764 kr -19% -19%
749 kr619 kr Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

    B2B Installateurs bestellen met korting

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days

    Size chart

    DS-PDPG12P-EG2, wired PIR glass break detector

    • PIR detection range: 12m / 85.9°
    • Glass breakage range: 8m / 120°
    • Up to 30KG pet immunity
    • Selectable EOL resistors
    • 9-16 VDC wide voltage adjustment with reverse polarity protection

    Technical specifications:

    Detectie Prestaties

    • Detection Method passive infrared; acoustic sensor
    • Detectiebereik 12m
    • Detectiehoek 85,9°
    • Detectiezones 52
    • Detectable speed 0.3 ~ 2 m/s
    • Huisdier Immuniteit 30Kg
    • PIR-gevoeligheid Auto, Pet
    • Witlichtfilter 6500lux
    • Glasbreuk Bereik 8m
    • Type of glass Float; Plate; Knotted; Wired; Laminated Lead; Double Glazing
    • Glass Breakage Sensitivity Potentiometer Adjustment
    • Glass Thickness 2.4 mm to 6.4 mm
    • Support for digital temperature compensation
    • Glass size 0.3mx 0.3m to 3m x 3m
    • Support for creep zone protection

    Featuring

    • Ondersteuning bij digitale verwerking
    • Verzegelde optische ondersteuning
    • Sabotagebeveiliging voorzijde

    Koppel

    • Alarmuitgang Normaal Gesloten
    • LED indicator Green (PIR), Red (BG), Blue (alarm)

    Overdragen

    • Overdrachtsmethode Bedraad

    Elektrische kenmerken

    • Stroomverbruik 36mA Max
    • Power supply 9 to 16 VDC
    • Typical voltage 12 VDC

    Algemeen

    • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
    • Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
    • Bedrijfsvochtigheid 10% tot 90%
    • Dimensions (WxHxD) 65.5 mm × 103 mm × 48.5 mm
    • 98,5 g
    • Mounting height 1.8 to 2.4 m
    • Montagemethode Muur
