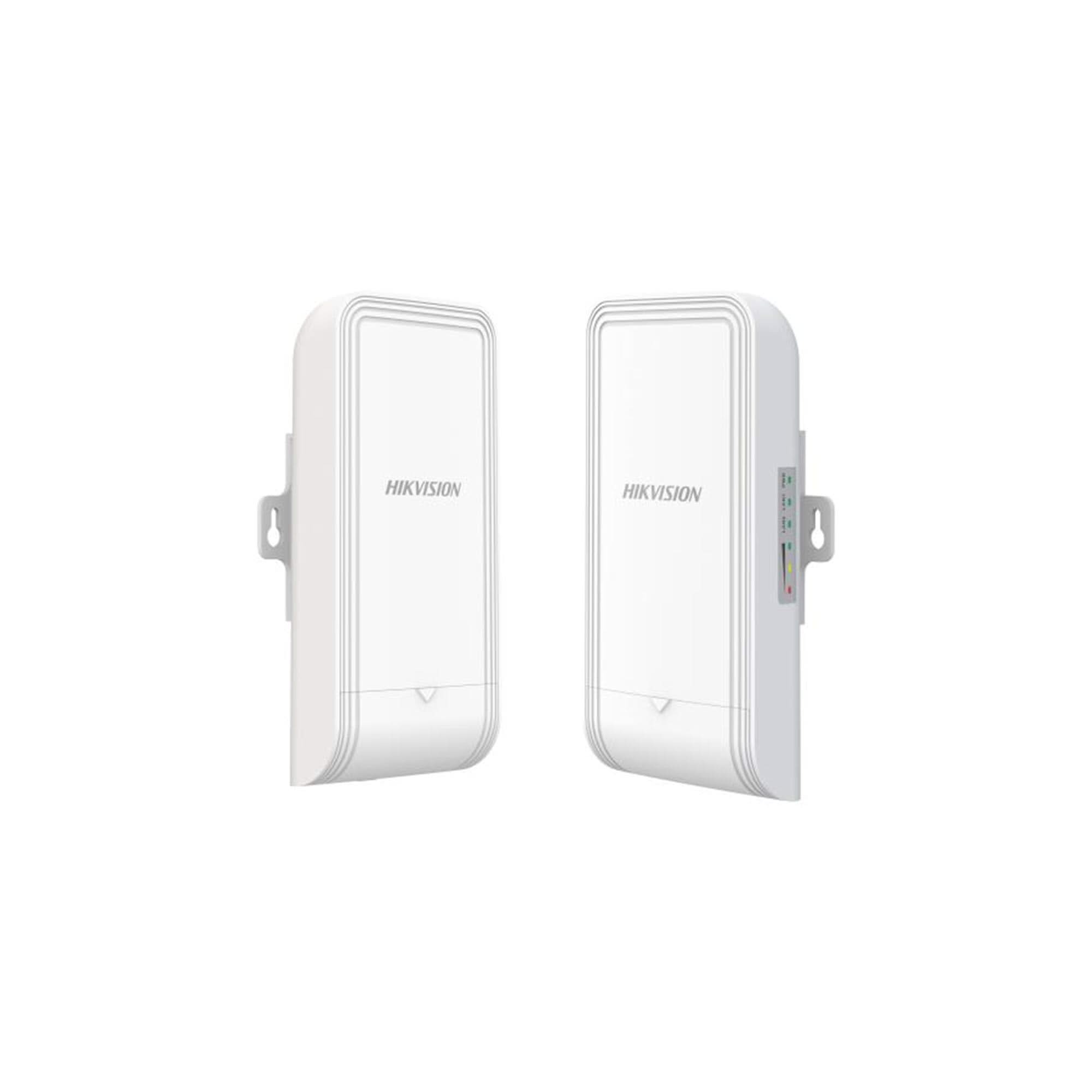

DS-3WF02-5AC/D, Wireless bridge Kit 35degrees, 5Km

Hikvision's wireless bridges are designed to create network connectivity through 2 or more antennas for camera applications. The antennas with PoE input and output, are suitable for point-to-point and point-to-multi-point applications. Each antenna has a convenient Wi-Fi management function for local network, configuration and monitoring via WebUI, with simple side installation indicators. Wireless bridges from Hikvision provide flexible and high-performance solutions for wireless video applications.

For reliable and stable operation of a camera system, good network equipment is essential. Hikvision has a wide range of switches with a particular focus on video applications. Various switches are available with high throughput, powerful PoE capabilities and optimization functions for video transmission. Available in managed and unmanaged versions, there is a suitable switch for every video application.

The antennas are suitable for wall and pole mounting. For pole mounting a set of plastic ties is included for single use. Hose clamps can also be used but should be ordered separately.

The antennas are designed so that they only need to be properly aligned opposite each other and then they can already build the connection. However, like any other Hikvision IP device, each antenna must first be provided with an admin password and an IP address.

Free line of sight is required for proper stable operation: For proper operation, the antennas must have a clear view to each other. Buildings, trees and other obstacles should be avoided. The antennas have a signal indicator that shows the quality of the connection. Try to place the antennas in sight of each other so that the indicator gives as high an indication as possible

Specifications:

Hardware:

• Interfaces: 1 × PoE RJ-45 (1000 Mbps), 1 × LAN RJ-45 (1000 Mbps)
• Power supply: PoE IN: 802.3at, PoE OUT: 802.3af
• Included: Power adapter, antenna
• Ethernet ports: 2 (10/100/1000 Mbps)
• Resetknop: 1
• Power consumption: Max. 3.6 W
• Indication lights: Power, LAN, Signal intensity
• External ports: 2 × RJ-45, 1 × Reset

  Features:


• Encryption:WPA-PSK, WPA/WPA2, hidden SSID
• Management: Syslog, NTP, Web configuration
• Certification: CE, FCC
• Network protocols: UDP, TCP, HTTPS, IPv4, NTP, DHCP
• TDMA: Ja, met verbeteringen

  Algemeen:


• Range: Up to 5 km at 35° angle
• Temperatuur: -30 °C to +70 °C
.
• Humidity: 5%-95%, non-condensing
• Weight: 0.46 kg (gross), 0.307 kg (net)
• Dimensions: 132 × 228 × 91 mm (packaging), 90.8 × 57.8 × 187.8 mm (product)
• Montage: Bracket for pole mounting included
.
