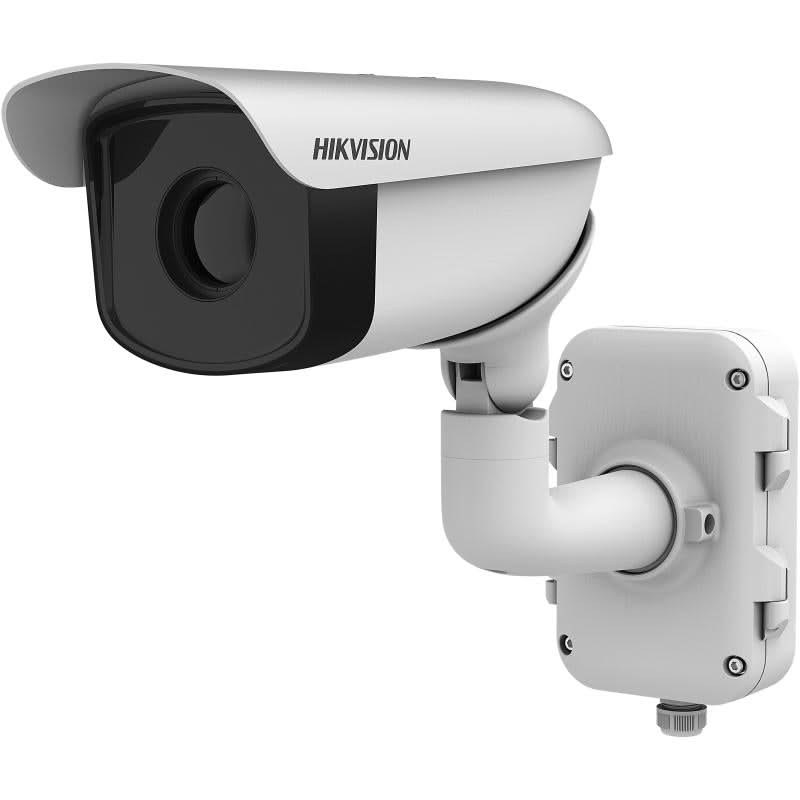

DS-2TD2367-50/PY, Thermal Bullet Camera for Perimeter Security, Fire Prevention and Temperature Monitoring, among others

The Hikvision DS-2TD2367-50/PY is an advanced network thermal Bullet Series camera designed for perimeter security and fire prevention in critical infrastructures such as airports, prisons, power plants and 4S stores. This camera provides reliable detection in low light or complete darkness, thanks to its uncooled VOx thermal sensor and rugged housing.

The DS-2TD2367-50/PY is equipped with a high-quality thermal detector. The rugged housing meets IP67 standard, which means the camera is resistant to dust and water, and is designed for use in corrosive environments.

Key specifications.

• Thermal resolution: 640 × 512 pixels

• Sensor: Vanadium Oxide (VOx) Uncooled Focal Plane Array (UFPA)

• Pixel spacing: 17 µm

• NETD: < 35 mK (25 °C, F# = 1.0)

• Focal length: 50 mm

• Field of view: 12.4° × 10° (H × V)

• Minimum focusing distance: 50 m

• Digital zoom: ×2, ×4, ×8

• Temperature range: -20 °C to 150 °C

• Temperature accuracy: max. ±8 °C or ±8%

• Fire detection: up to 10 fire points detectable

• VCA (Video Content Analysis): line crossing, intrusion, region input and output (up to 8 lines)

• Image Processing: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR

• Housing: IP67 certified, suitable for corrosive environments

• Power supply: 24 VAC, 9-15 VDC or PoE (802.3at, class 4)

• Temperature range: -40 °C to 65 °C

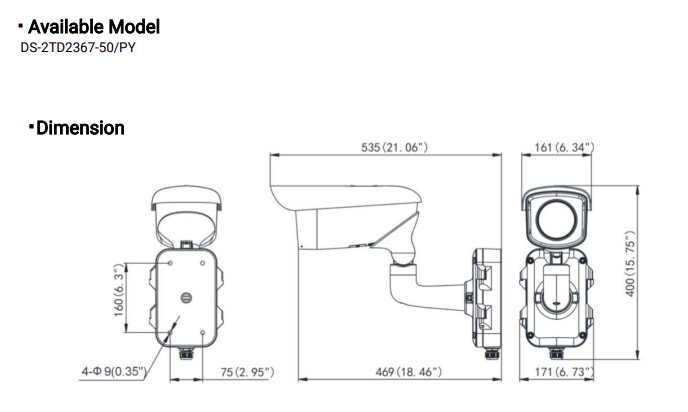

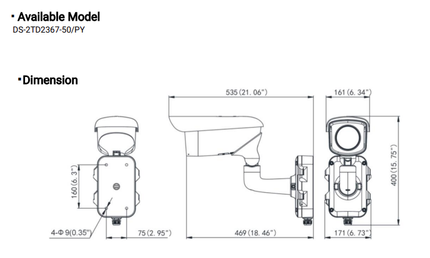

• Dimensions: 535 mm × 400 mm × 171 mm

• Weight: approximately 6.4 kg

Smart features

• Temperature alarm: Warns of deviations within the set range.

• Fire detection algorithm: Quickly detects fires based on thermal anomalies.

• SCC rules: Four types (line crossing, intrusion, region input and output), up to eight rules.

• Temperature measurement: Three line types (10 points, 10 areas, 1 line), up to 21 lines

Network and storage

• Compression: H.265/H.264 (main, sub- and third stream), MJPEG

• Audio: G.722.1, G.711, MP2L2, G.726, AAC, PCM

• Storage: MicroSD/SDHC/SDXC (up to 256GB), NAS (NFS, SMB/CIFS), ANR (Auto Network Replenishment)

• Security: HTTPS, IEEE 802.1x, IP filtering, MAC binding

• Supported browsers: IE 11, Chrome 41-44, Firefox 30-51

• Supported clients: iVMS-4200, Hik-Connect

Applications

• Perimeter security: Effective detection of intruders at long distances.

• Fire Prevention: Early detection of fires due to temperature anomalies.

• Critical infrastructures: Security of airports, prisons, power plants and other sensitive locations.
