DS-2CD2086G2H-IU 8Mp 4K Mini Bullet, Powered by Darkfighter, AcuSense, 40m IR

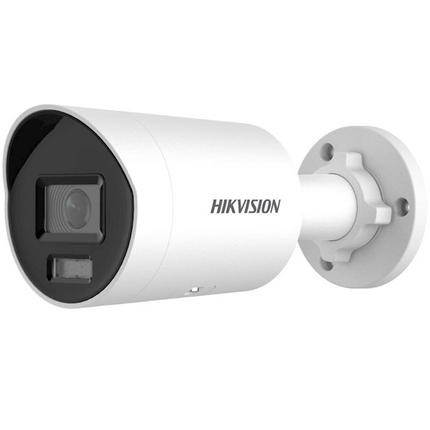

The Hikvision DS-2CD2086G2H-IU is a compact and powerful 8 megapixel 4K mini bullet IP camera with smart detection based on AcuSense technology. This camera is ideal for situations where high-quality video security is required in a discreet and weatherproof design. Thanks to the integrated microphone, this camera also offers audio recording for a more complete picture of any situation.

Hikvision's EasyIP 4.0 AcuSense cameras are low-light cameras available in resolutions of 2, 4 and 8MP. By default, these cameras feature 120dB WDR and H265+. Cameras from the EasyIP4.0 series are Powered by Darkfighter. This means that a combination of a light-sensitive sensor and DarkFighter image optimization technology ensures that the camera can provide color images in low-light situations. This series of cameras is distinguished by the unique AcuSense technology. This is an advanced algorithm that is capable of recognizing vehicles and people, enabling highly accurate detection.

Specifications:

Camera

• Number of image sensors: 1

• Optical/Thermal: Optical

• Image sensor: 1/1.8"

• Effective sensing distance (ideal conditions): 3.3 m to ∞

• Resolution: 3840 × 2160

• Number of pixels: 8MP

• Minimum illumination strength (color): 0.0008 Lux

• Minimum illumination strength (black and white IR): 0 Lux

• Illumination:IR

• LED distance: 40 m

• LED On/Off (Day/Night): Auto / Manual

• Shutter speed: 1/3 s ~ 1/100,000 s

• Noise reduction: 3DNR

• Video output: No

Lens

• Lens type: Fixed lens

• Iris: Fixed iris

• Focal length: 2.8 mm / 4mm

• Maximum aperture: F1.0

• Horizontal aperture angle: 105° 2.8mm
  Horizontal aperture angle: 90° 4mm


• Focus control: Auto / Manual

Video

• Stream capability: 3 streams

• Video Compression: H.264, H.264+, H.265, H.265+, MJPEG

• Footage per second (main stream): 25 fps @ 3840 × 2160

• 2nd stream: 25 fps @ 1280 × 720

• 3rd stream: 10 fps @ 1920 × 1080

• Day/Night: Auto (with IR-cut filter)

• Light compensation: BLC, HLC, WDR (120 dB)

• Motion detection: On / Off

Smart functions (AI)

• AI Face Capture / Attributes

• AI Perimeter Protection

• Scene Change Detection

• Smart IR: Yes

• Smart LED: Auto/Manual

• Electronic Image Stabilization (EIS): No

• Defog (fog correction): No

• Privacy masking: Yes

Audio

• Built-in microphone: Yes

• Audio input: No

• Audio output: No

• Audio compression: AAC, G.711, G.722.1, G.726, MP2L2, PCM

• Speaker: No

Network

• Ethernet: 1x RJ45 10M/100M self-adaptive Ethernet port

• Storage via SD card: Yes

• Maximum SD card storage capacity: 512GB

Interface

• RS-485: No

• Alarm I/O: No

Electric

• Power supply included: No

• Power supply: 12V DC, PoE (IEEE 802.3af)

• Maximum consumption:

  • 12V DC: 7 W max.

  • PoE: max. 8.5 W

Environment

• Operating temperature: -30°C ~ +60°C

• Waterproofness: IP67

Construction

• Material: Metal

• Diameter: Ø74.4 mm

• Depth: 179.2 mm

• Weight: 0.525 kg
