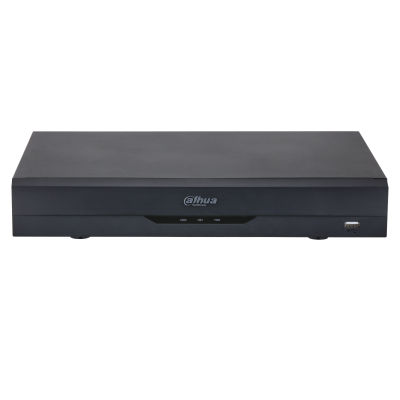

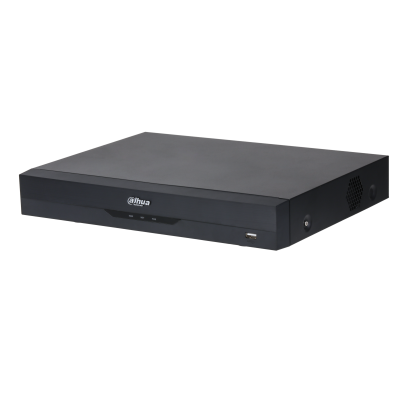

DH-XVR5108HS-4KL-I3, WizSense 8-channel Penta-brid 5MP compact 1U digital video recorder

DH-XVR5108HS-4KL-I3, WizSense 8-channel Penta-brid 5MP compact 1U digital video recorder

Penta-brid recorder, meaning this recorder can handle as many as 5(!) different systems. HD-CVI, HD-AHD, TVI, IP and even traditional analogue cameras can go on this system.

This particular DVR is capable of recording 4K 3840x2160 resolution, or lower) from 8 cameras simultaneously. Equipped with many additional intelligent features, including detection of people or vehicles and even face recognition! See the datasheet for more information.

The connections are with BNC and can be connected either with combicoax or UTP cabling in combination with Baluns. If you also use IP cameras, connect them to your network, preferably wired and possibly via Wifi. It is also possible to connect a second screen on which a single camera can be displayed. That makes this recorder also perfectly suitable as a replacement for your recorder in existing analogue installation.

Specifications:

• Model Dahua XVR5108H-4KL-I3
• Suitable for HD-CVI, HD-AHD, TVI, Analogue and IP on all channels
• H.264+/H.264 dual-stream video compression
• All channels 4K/7F recording or lower, 5MP/12F or lower, 1080p/30F or lower
• Monitor output HDMI and VGA simultaneously
• 4 channels simultaneous playback
• Space for 1 SATA drive up to 10TB
• 3D intelligent positioning with Dahua PTZ dome camera 's
• Various network monitoring possible such as Web viewer, PS software CMS (DSS/Smart PSS) and of course your mobile phone (DMSS for Iphone and Android)
• Delivered without hard disk (can be ordered in addition)
• Audio recording is also possible
• Motion detection on each camera
• Includes mouse and 12V power supply
• Fan on the processor: no
• Cabinet fan: Yes
• Afmeting 325mm×257mm×55mm
