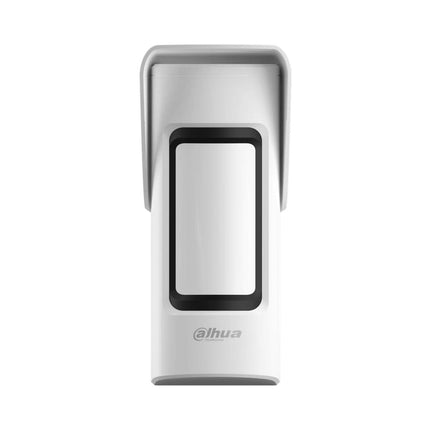

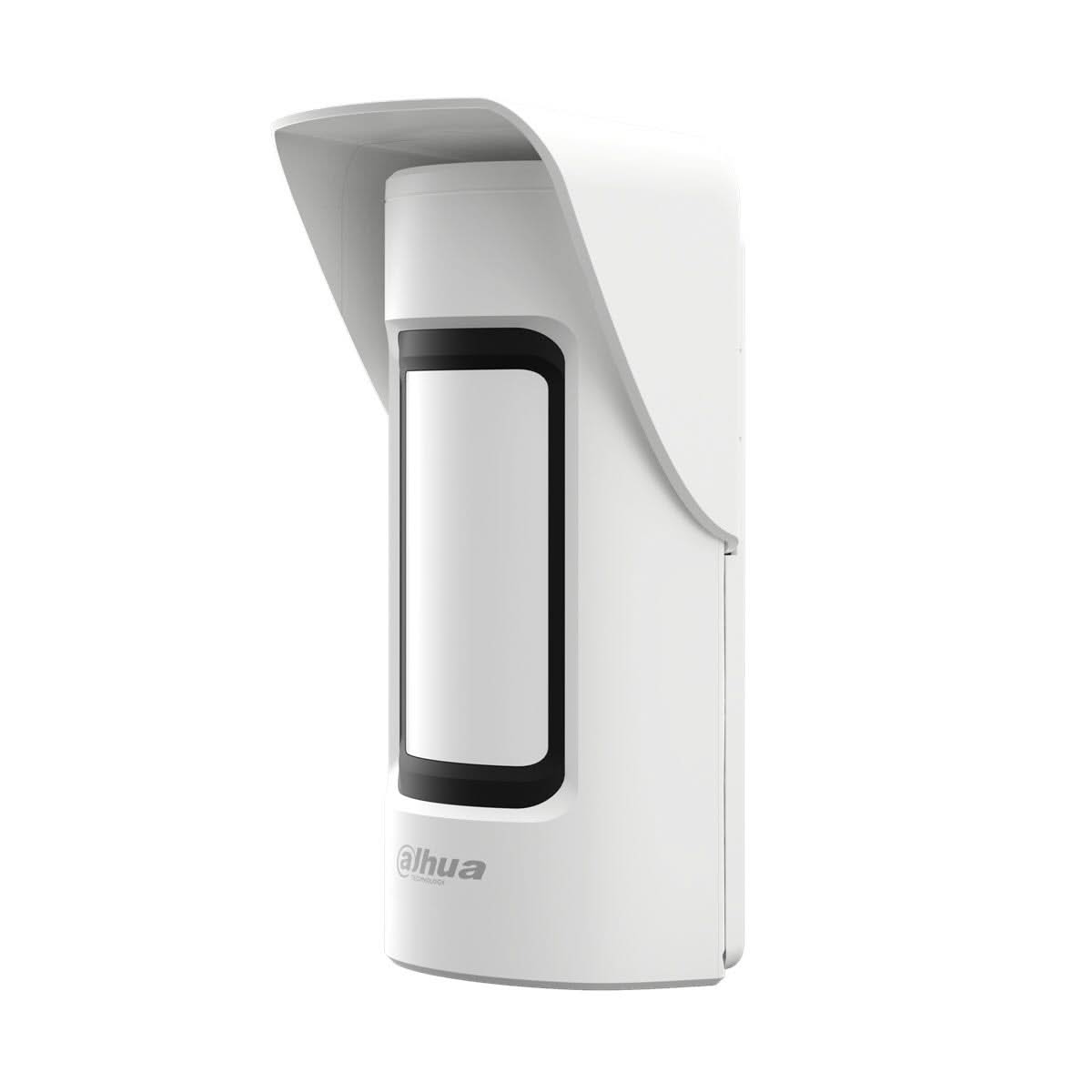

ARD2251E-W2(868), Wireless outdoor PIR detector 15m, anti-mask, pet-friendly, AirShield, IP66

The Triple-Tech wireless detector performs accurate detection using PIR, microwave detection technology, optical technology and intelligent algorithms. It also eliminates interference caused by small animals, ambient temperature and changes in light, allowing the detector to accurately recognise moving people, even in complex environments. Combined with the camera module, its capabilities expand, allowing scenes to be monitored via videos and images, and alarms to be monitored in real time. Notifications are also sent when alarms are activated, keeping you informed of the situation at your location.

Specifications:

• Video & Audio

  • Field of view: 110° (H); 60° (V)
  • Image type: JPEG
  • Resolution: 1280 × 960; 640 × 480; 320 × 240; 160 × 120
  • Frame rate: 2 frames per second
  • Lighting mode: Infrared light
  • Lighting range: 15 m (49.21 ft)
  • Day/Night Switching: Colour; Black and white

• Functie

  • Indicator lamp: 1 × green alarm indicator
  • Button: 1 × on/off switch
  • 1 × detection range adjustment switch
  • Function update: Cloud update
  • Low battery detection: yes
  • Sabotage: Yes, tamper alarm
  • Motion detection: Yes

• Technisch

  • Detection mode: PIR + Microwave
  • Sensitivity: PIR: 3 levels adjustable
  • Detection range: Angle: 90°
  • Range: 15 m (49.21 ft), installation height 1 m (3.28 ft)
  • Detection speed: 0.3 m/s-2 m/s (0.98 ft/s-6.56 ft/s)
  • Microwave frequency: 24 G
  • Pet-friendly level: < 80 cm (2.62 ft), about 40 kg (88.19 lb)
  • Resistance to white light: 10,000 lux
  • Anti-masking: yes
  • Wo-way digital temperature compensation: Yes, no attenuation of sensing distance at high temperatures
  • Scenario: outdoor, indoor
  • Operating current: 20 uA
  • Alarm current:
    • Without camera: 26 mA (average); 250 mA (max)
    • With camera at night: 380 mA (average); 1.5 A (max)

• Draadloos

  • Frequency: 868.0 MHz-868.6 MHz
  • Send power (EIRP) limit: 25 mW
  • Communication mechanism: two-way
  • Communication distance: RF: Up to 1,600 m (5,249.34 ft) in an open space
  • Encryptiemodus: AES128
  • Frequency hopping: yes

• Algemeen

  • Power supply: CR123A × 4
  • Battery life:
    • Without camera: 5 years (10 alarms per day)
    • With camera: 3.5 years (alarms twice a week)
  • Operating temperature: -25 °C to +60 °C (-13 °F to +140 °F)
  • Operating humidity: 10%-90% (RH)
  • Product dimensions: 211 mm × 106 mm × 94 mm (8.31" × 4.17" × 3.70")
  • Installation height: 0.8 to 1.3 m
  • Net weight: 651 g (1.44 lb)
  • Installation mode: wall mounting, pole mounting
  • Casing: PC + GF
  • Protection class: IP66
  • Certifications: CE
  • Anti-corrosion class: Basic protection
  • Storage temperature: -25 °C to +60 °C (-13 °F to +140 °F)
