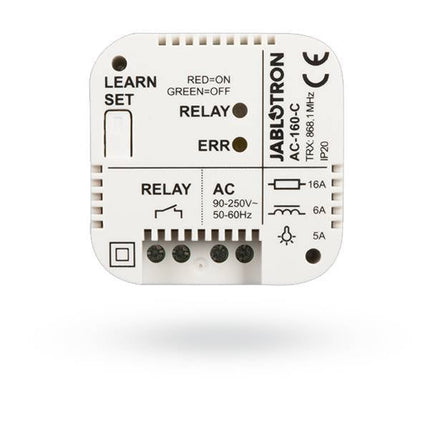

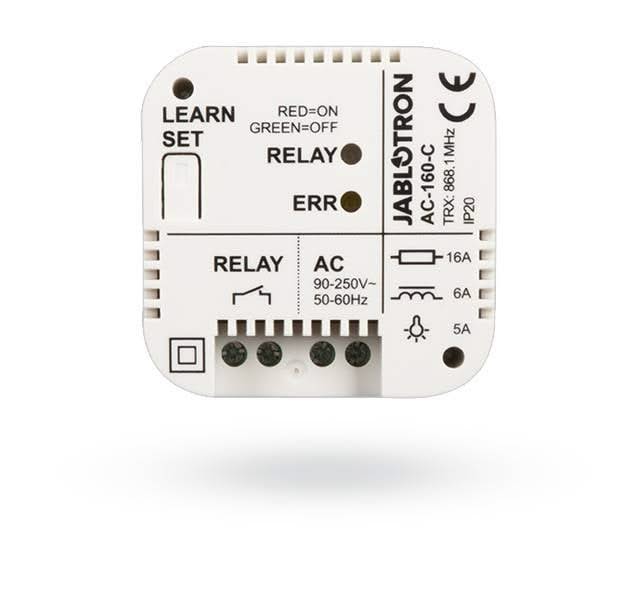

AC-160-C wireless multifunctional power relay, flush-mounted model

Jablotron AC-160-C wireless multifunctional power relay, flush-mounted modelThe relay can also be installed as an independent device, responding to the... Read more

Delivery time 1 - 2 working days

1 799 kr1 487 kr Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

    B2B Installateurs bestellen met korting

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days

    check Associated products for AC-160-C wireless multifunctional power relay, flush-mounted model

    Size chart

    Jablotron AC-160-C wireless multifunctional power relay, flush-mounted model

    The relay can also be installed as an independent device, responding to the activation of unidirectional wireless detectors of the JA-15x series, for example. In this case, the relay is activated according to the mode selected for the relevant detector (choice of 5 modes): extended copy, impulse, status change, shutdown and blocking). It provides a switching contact relay with galvanic and safety isolation for switching a current load of 230V/16A. It occupies one position in the system.

    • Nominal supply voltage 100-230 V, 50-60 Hz
      Internal energy consumption at 230 V AC (min / max) 0.2 W / 0.7 W
      Operating frequency 868.1 MHz, Jablotron protocol
      Antenna internal
      Contact load capacity - protection class II Max. switched voltage 250 V AC
      Resistance load (cosφ=1) max. 16 A
      Inductive, capacitive load (cosφ=0.4) max. 8 A
      Halogen lighting max. 1000 W
      Minimum switched DC power supply 0.5 W
      Diameter of connected conductors max. 2 x 1.5 mm2 ; max. 1 x 2.5 mm2
      Class of protection against ingress IP20
      Sizes 49 x 49 x 26 mm
      Operating temperature range -10 °C - + 40 °C, RH 75% non-condensing
      Compliant with ETSI EN 300 220-1, EN 50130-4, EN 55022, EN 60950-1
      Operating conditions ERC REC 70-03
